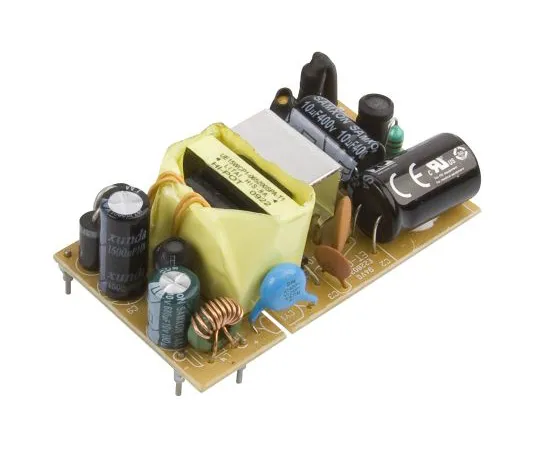

63-6856-02 AC/DC Converter 24 V dc 630 mA 15 W open frame Y VCP15US24
Product Description
Product Model: 63-6856-02Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6856-02
Product Brand: XP Power
Features
- XP Power-VCP15 Series Switch Mode Power Supply
- XP Power's VCP15 Series 15 W power supply is a low-cost, board-mounted power supply solution for a wide variety of applications. The VCP15 series outputs a voltage of 5 to 15 V, and the input power at low load; 0.3 W, designed to comply with the latest environmental laws and regulations. Beca*** of the low profile of this series, a wide range of small, reliable power supplies are available that are Medical/ITE certified.
- RS part number on the cover; Available in 122-7563 122-7563 Features and benefits: Cost effective solution. Substrate mounting class II structure. Output voltage: 5 → 24 V Input power without load:; 0.3 W
Spec
- Quantity: 1 piece
- Output Voltage: 24 V dc
- Output current: 630 mA
- Rating Power: 15 W
- Number of outputs: 1
- Input Voltage: 90 to 264 V ac
- Mounting Type: Chassis Mount
- Package Type: Open Frame
- Length: 65 mm
- Width: 38 mm
- Depth: 21.5 mm
- Weight: 40 g
- Efficiency: 84%
- Maximum temperature: + 70 degrees C
- Medical standards certification: Yes
- RoHS compliance status: Compliance
- Securities Code: 122 -7566
