63-6853-13 Insulation DC-DC Converter Vout: ± 15 V dc 2.97 to 3.63 V dc 1 W 3.3 V dc ISA0315
Product Description
Product Model: 63-6853-13Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6853-13
Product Brand: XP Power
Features

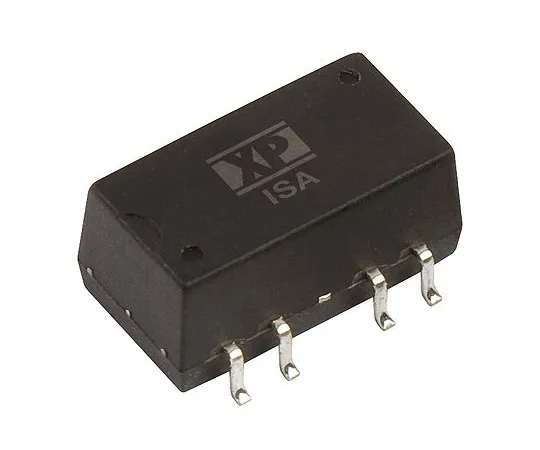

- XP Power-ISA Series Insulated DC-DC Converter
- The ISA series of XP Power is a reliable dual-output 1W insulated DC-DC converter. Comes in a compact SMD package with 1500 V dc breakdown voltage and optional 3000 V dc option. Operating temperature is -40 to +105 °C.
- 1 W Insulated DC-DC Converter with 1500 V dc Insulation Voltage, 3000 V dc Option Dual Output Operating Temperature Range: -40 → +105 °C Maximum Efficiency: 82% Small SMD Package Substrate Mounting
Spec
- Quantity: 1 piece
- Output Voltage: ± 15 V dc
- Input voltage range: 2.97 to 3.63 V dc
- Input voltage nominal: 3.3 V dc
- insulation Voltage: 1.5 kV dc
- Rating Power: 1W
- Output current: ± 33 mA
- Mounting type: Surface mounting
- Number of outputs: 2
- Efficiency: 78%
- Package: SMD
- Minimum temperature: -40 degrees C
- Maximum temperature: + 105 degrees C
- Length: 15.24 mm
- RoHS compliance status: Compliance
- Securities Code: 122 -7270
