63-6852-82 Insulation DC-DC Converter Vout: 24 V dc 9 to 36 V dc 5 W 24 V dc IEQ0524S24
Product Description
Product Model: 63-6852-82Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6852-82
Product Brand: XP Power
Features

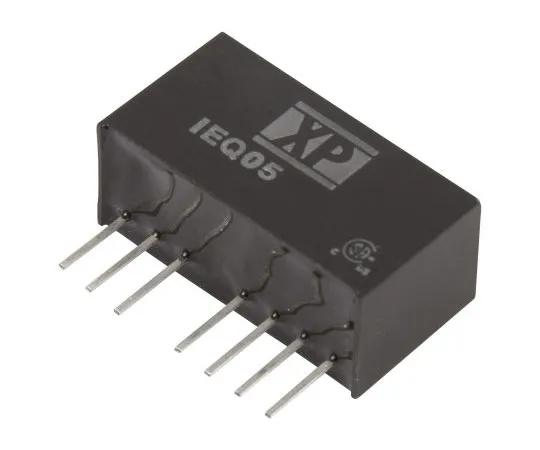

- XP Power-IEQ05 Series Insulated DC-DC Converter
- The IEQ05 series of XP Power is a reliable and stable single/dual output 5W insulated DC-DC converter. Packed in a compact SIP8 package, it features a 1500 V dc breakdown voltage and high efficiency of up to 83%. It is compact, has a wide input range of 4:1, has a remote on/off setting function, and has an operating temperature of -40 to +90 °C.
- 5 W Insulated DC-DC Converter 1500 V dc Insulated Stable Single/Dual Output Remote On/Off Setting 4:1 Wide Input Range Operating Temperature Range: -40 → +90 °C Maximum Efficiency: 83% Compact SIP8 Package Substrate Mount
Spec
- Quantity: 1 piece
- Output Voltage: 24 V dc
- Input voltage range: 9 to 36 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 1.5 kV dc @ 60 s, 1.8 kV dc @ 1 s
- Rating Power: 5W
- Output current: 209 mA
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 83%
- Packages: SIP
- Road regulation: ± 1%
- Maximum temperature: + 90 degrees C
- Depth: 11.2 mm
- RoHS compliance status: Compliance
- Securities Code: 122 -7238
