Electronic/Electrical Parts and Controll Equipments

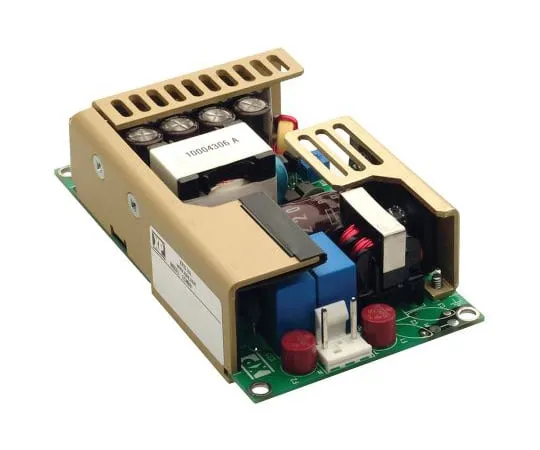

63-6850-95 AC/DC Converter 9 V dc 11.1 A 100 W Open Frame Y ECM100US09
Product Description
Product Model: 63-6850-95Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6850-95
Product Brand: XP Power
Features
- XP Power-ECM 100 Series AC-DC Power Supply
- The XP Power ECM series offers a variety of open-frame 100 W AC-DC power supplies. All of these products are approved by the IT/Healthcare industry. All of these reliable, compact power supplies have a Class I or Class II structure. This series of products is convectively cooled and has an operating temperature range of 0 to +70 °C.
- 100 W open frame, AC-DC power efficiency: 80 ~ 85% IT/Healthcare approved Class I/Class II structural DC input version available (DCM series)
Spec
- Quantity: 1 piece
- Output Voltage: 9V dc
- Output Current: 11.1 A
- Rating Power: 100 W
- Number of outputs: 1
- Input Voltage: 120 to 370 V dc, 90 to 264 V ac
- Mounting Type: Chassis Mount
- Package Type: Open Frame
- Length: 114.3 mm
- Width: 63.5 mm
- Depth: 27 mm
- Weight: 180 g
- Maximum temperature: + 70 degrees C
- Medical standards certification: Yes
- RoHS compliance status: Compliance
- Securities Code: 122 -7043
