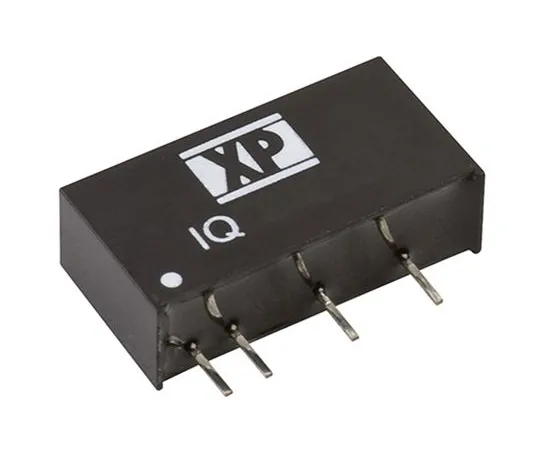

63-6850-89 Insulation DC-DC Converter Vout: 5 V dc 10.8 to 13.2 V dc 1 W 12 V dc IQ1205SA
Product Description
Product Model: 63-6850-89Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6850-89
Product Brand: XP Power
Features
- XP Power-IQ Series Insulated DC-DC Converter
- The IQ series of XP Power is a reliable semi-adjustable single/dual output 1W insulated DC-DC converter. The breakdown voltage is 1000 V dc and is provided in industry-standard SIP packages. These compact DC-DC converters also feature high efficiency of up to 89%, remote on/off settings, and continuous short-circuit protection.
- 3 W Insulation DC-DC Converter with 1000 V dc Insulation Voltage, 3000 V dc Option Semi-Adjustable Single/Dual Output Operating Temperature Range: -40 → +85 °C Industry Standard SIP Packaging Up to 89% High Power Efficiency Convective Cooling
Spec
- Quantity: 1 piece
- Output Voltage: 5V dc
- Input voltage range: 10.8 to 13.2 V dc
- Input voltage nominal: 12 V dc
- insulation Voltage: 1 kV dc
- Rating Power: 1W
- Output current: 200 mA
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 84%
- Packages: SIP
- Minimum temperature: -40 degrees C
- Maximum temperature: + 85 degrees C
- Width: 6 mm
- RoHS compliance status: Compliance
- Securities Code: 122 -7037
