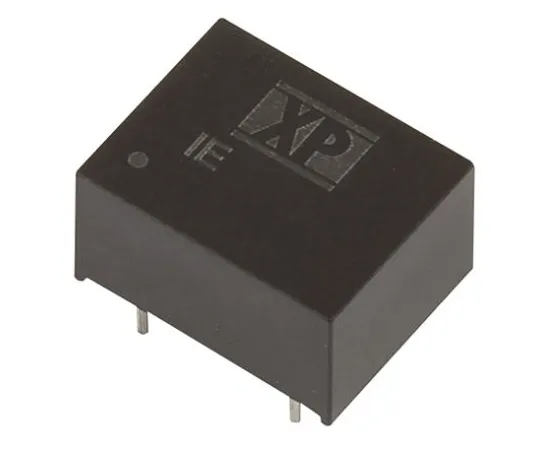

63-6849-33 Insulation DC-DC Converter Vout: 12 V dc 4.5 to 5.5 V dc 1 W 5 V dc IE0512D
Product Description
Product Model: 63-6849-33Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6849-33
Product Brand: XP Power
Features
- XP Power-IEU Series DC-DC Converters
- The IEU series of XP Power is a reliable single/dual output insulated DC-DC converter. The breakdown voltage is 1000 V dc and is provided in industry-standard SIP or DIP packages. All of these compact DC-DC converters operate at a higher temperature and are available in smaller package sizes.
- 1 W insulated DC-DC converter with 1000 V dc breakdown voltage, 3000 V dc option Single output Operating temperature range: -40 → +85 °C Industry standard SIP/DIP Packaging Maximum efficiency: 80% Small package available
Spec
- Quantity: 1 piece
- Output Voltage: 12 V dc
- Input voltage range: 4.5 to 5.5 V dc
- Input voltage nominal: 5V dc
- insulation Voltage: 1000 V dc
- Rating Power: 1W
- Output current: 84 mA
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 78%
- Package: DIP
- Load regulation: Maximum of 10%
- Maximum temperature: + 85 degrees C
- Series: IE
- RoHS compliance status: Compliance
- Securities Code: 122 -6876
