Electronic/Electrical Parts and Controll Equipments
63-6849-13 Insulation DC-DC Converter Vout: ± 24 V dc 21.6 to 26.4 V dc 1 W 24 V dc IA2424S
Product Description
Product Model: 63-6849-13Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6849-13
Product Brand: XP Power
Features
- XP Power-IA Series Insulated DC-DC Converter
- The IA series of XP Power is a reliable dual-output 1W insulated DC-DC converter. This series offers a breakdown voltage of 1000 V dc and is available in both industry-standard SIP and DIP packages. This dual-output DC-DC converter ***s industry-standard pin alignment to accommodate a wide operating temperature of -40 to +85 °C.
- 1 W Insulated DC-DC Converter 1000 V dc Insulation Voltage Dual Output Operating Temperature Range: -40 → +85 °C Both SIP and DIP Packages Available Maximum Efficiency: 80%
Spec
- Quantity: 1 piece
- Output Voltage: ± 24 V dc
- Input voltage range: 21.6 to 26.4 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 1 kV dc
- Rating Power: 1W
- Output current: ± 21 mA
- Mounting type: through hole
- Number of outputs: 2
- Efficiency: 78%
- Packages: SIP
- Load regulation: Maximum of 10%
- Maximum temperature: + 85 degrees C
- Width: 6.09 mm
- RoHS compliance status: Compliance
- Securities Code: 122 -6853
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-4948-31 TE Connectivity CPC Series 1 Series Cable Mount Connector, 4 contacts Plug 206060-1
model: 63-4948-31
brand: TE Connectivity
Electronic/Electrical Parts and Controll Equipments

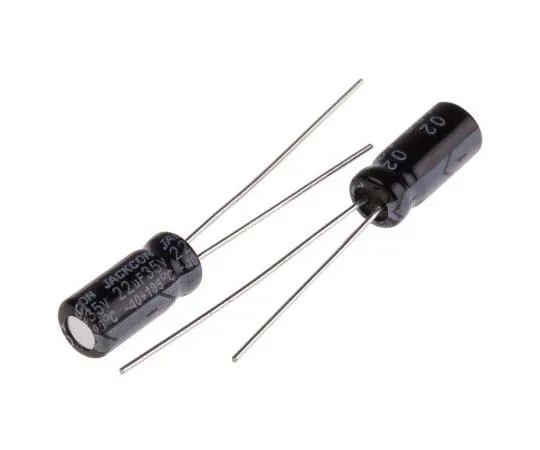

63-7736-99 RS PRO 22μF 35V dc Aluminium Electrolytic Capacitor, Through Hole 5 (Dia.) x 11mm +105°C 5mm 2mm 11mm 711-1239
