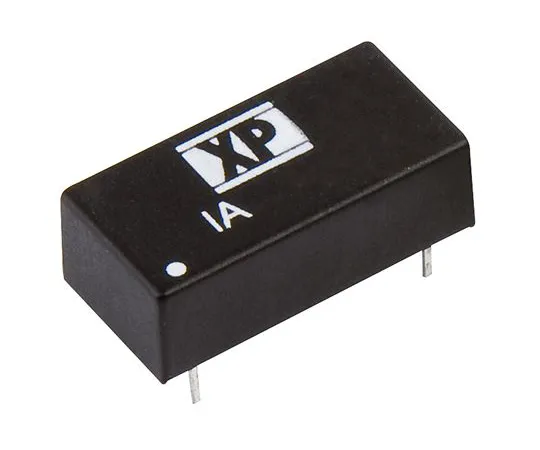

63-6849-05 Insulation DC-DC Converter Vout: ± 5 V dc 21.6 to 26.4 V dc 1 W 24 V dc IA2405D
Product Description
Product Model: 63-6849-05Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6849-05
Product Brand: XP Power
Features
- XP Power-IA Series Insulated DC-DC Converter
- The IA series of XP Power is a reliable dual-output 1W insulated DC-DC converter. This series offers a breakdown voltage of 1000 V dc and is available in both industry-standard SIP and DIP packages. This dual-output DC-DC converter ***s industry-standard pin alignment to accommodate a wide operating temperature of -40 to +85 °C.
- 1 W Insulated DC-DC Converter 1000 V dc Insulation Voltage Dual Output Operating Temperature Range: -40 → +85 °C Both SIP and DIP Packages Available Maximum Efficiency: 80%
Spec
- Quantity: 1 piece
- Output Voltage: ± 5V dc
- Input voltage range: 21.6 to 26.4 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 1 kV dc
- Rating Power: 1W
- Output current: ± 100 mA
- Mounting type: through hole
- Number of outputs: 2
- Efficiency: 74%
- Package: DIP
- Load regulation: Maximum of 10%
- Maximum temperature: + 85 degrees C
- Series: IA
- RoHS compliance status: Compliance
- Securities Code: 122 -6845
