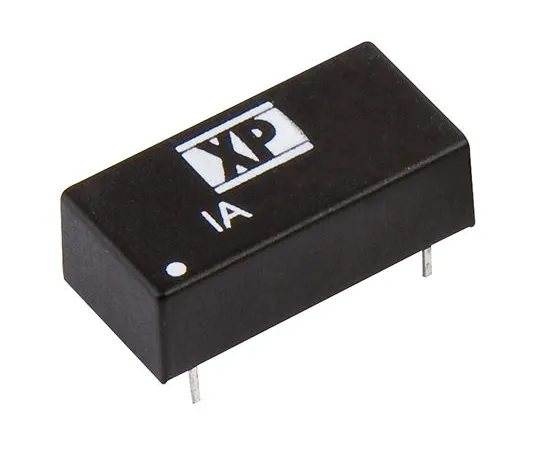

63-6848-88 Insulation DC-DC Converter Vout: ± 12 V dc 4.5 to 5.5 V dc 1 W 5 V dc IA0512D
Electronic/Electrical Parts and Controll Equipments

63-6848-88 Insulation DC-DC Converter Vout: ± 12 V dc 4.5 to 5.5 V dc 1 W 5 V dc IA0512D

model: 63-6848-88
brand: XP Power

Product Description

Product Model: 63-6848-88Product Brand: XP Power Featur […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-6848-88
Product Brand: XP Power

Features

  • XP Power-IA Series Insulated DC-DC Converter
  • The IA series of XP Power is a reliable dual-output 1W insulated DC-DC converter. This series offers a breakdown voltage of 1000 V dc and is available in both industry-standard SIP and DIP packages. This dual-output DC-DC converter ***s industry-standard pin alignment to accommodate a wide operating temperature of -40 to +85 °C.
  • 1 W Insulated DC-DC Converter 1000 V dc Insulation Voltage Dual Output Operating Temperature Range: -40 → +85 °C Both SIP and DIP Packages Available Maximum Efficiency: 80%

Spec

  • Quantity: 1 piece
  • Output Voltage: ± 12 V dc
  • Input voltage range: 4.5 to 5.5 V dc
  • Input voltage nominal: 5V dc
  • insulation Voltage: 1 kV dc
  • Rating Power: 1W
  • Output current: ± 42 mA
  • Mounting type: through hole
  • Number of outputs: 2
  • Efficiency: 78%
  • Package: DIP
  • Load regulation: Maximum of 10%
  • Maximum temperature: + 85 degrees C
  • Width: 10.16 mm
  • RoHS compliance status: Compliance
  • Securities Code: 122 -6829
