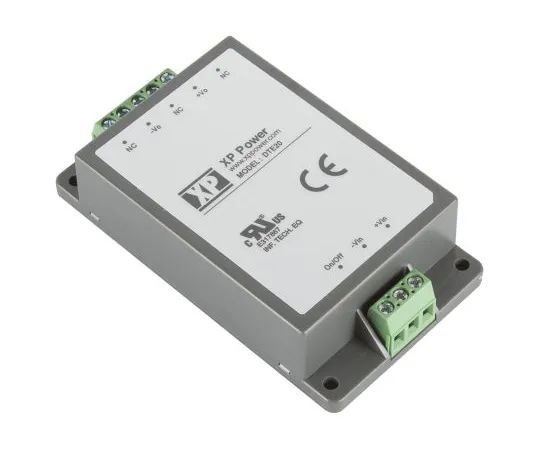

63-6848-12 Insulation DC-DC Converter Vout: 24 V dc 9 to 36 V dc 20 W 24 V dc DTE2024S24
Product Description
Product Model: 63-6848-12Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6848-12
Product Brand: XP Power
Features
- XP Power-DTE20 Series DC-DC Converter
- The XP Power DTE20 series is a highly reliable 20 W fully enclosed DC-DC converter. This series is designed for chassis installation or DIN rail installation. The input range is 4:1 and the operating temperature is -40 to +85 °C.
- 20 W fully sealed for chassis installation or DIN rail installation Operating temperature range: -40 → +85 °C 4:1 wide input range Remote on/off High efficiency up to 91%
Spec
- Quantity: 1 piece
- Output Voltage: 24 V dc
- Input voltage range: 9 to 36 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 2500 V dc
- Rating Power: 20 W
- Output current: 835 mA
- Mounting Type: Chassis Mount
- Number of outputs: 1
- Efficiency: 90%
- Minimum temperature: -40 degrees C
- Maximum temperature: + 85 degrees C
- Series: DTE 20
- RoHS compliance status: Compliance
- Securities Code: 122 -6616
