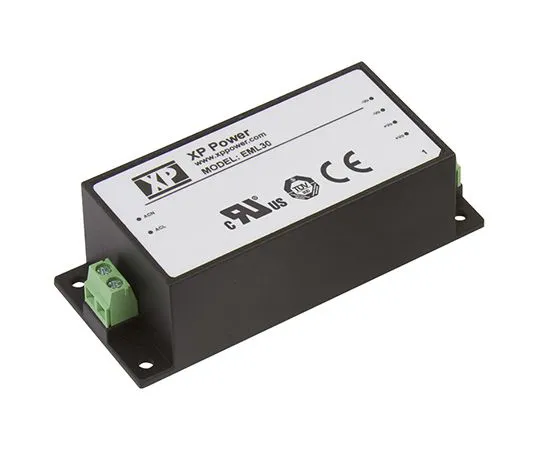

63-6848-05 AC/DC Converter 12 V dc 2.5 A 30 W Sealed Y EML30US12-S
Product Description
Product Model: 63-6848-05Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6848-05
Product Brand: XP Power
Features
- XP EMCO-EML30 Series AC-DC Power Supply
- XP Power's EML30 series is a highly reliable, open-frame and sealed AC-DC single-output power supply. It is designed primarily for medical applications and complies with worldwide medical safety standards according to Class B conductive and radioactive noise. This compact Class II design offers a single output range of 3.3~48 V for peak loads of 130% and 30 seconds.
- 30 W 3.3 to 48 V single output mechanical option: 130% compliant with global medical safety standards including substrate mounting, open frame and chassis mounting, Class II design for 30 second peak load
Spec
- Quantity: 1 piece
- Output Voltage: 12 V dc
- Output Current: 2.5 A
- Rating Power: 30 W
- Number of outputs: 1
- Input Voltage: 120 to 370 V dc, 85 to 264 V ac
- Mounting Type: Chassis Mount
- Package Type: Sealed
- Length: 96 mm
- Width: 40 mm
- Depth: 28.5 mm
- Weight: 170 g
- Maximum temperature: + 70 degrees C
- Medical standards certification: Yes
- RoHS compliance status: Compliance
- Securities Code: 122 -6605
