Electronic/Electrical Parts and Controll Equipments

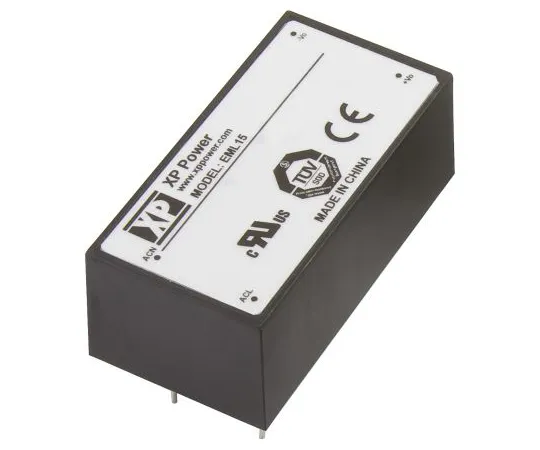

63-6847-96 AC/DC Converter 24 V dc 630 mA 15 W sealed Y EML15US24-E
Product Description
Product Model: 63-6847-96Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6847-96
Product Brand: XP Power
Features
- XP Power-EML15 Series AC-DC Power Supply
- XP Power's EML15 series is an open-frame and sealed, highly reliable AC-DC single-output power supply. It is designed primarily for medical applications and complies with worldwide medical safety standards according to Class B conductive and radioactive noise. This compact Class II design offers a single output range of 3.3~48 V for peak loads of 130% and 30 seconds.
- 15 W 3.3 to 48 V single output structural option: substrate mounting, open frame, chassis mounting with threaded terminals and DIN rail 130% compliant with worldwide medical safety standards, Class II design for 30 second peak load
Spec
- Quantity: 1 piece
- Output Voltage: 24 V dc
- Output current: 630 mA
- Rating Power: 15 W
- Number of outputs: 1
- Input Voltage: 120 to 370 V dc, 85 to 264 V ac
- Mounting Type: PCB Mount
- Package Type: Sealed
- Length: 65 mm
- Width: 33.3 mm
- Depth: 24.4 mm
- Weight: 90 g
- Maximum temperature: + 70 degrees C
- Medical standards certification: Yes
- RoHS compliance status: Compliance
- Securities Code: 122 -6592
