63-6845-58 Insulation DC-DC Converter Vout: ± 24 V dc 18 to 36 V dc 3 W 24 V dc JCE0324D24
Product Description
Product Model: 63-6845-58Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6845-58
Product Brand: XP Power
Features

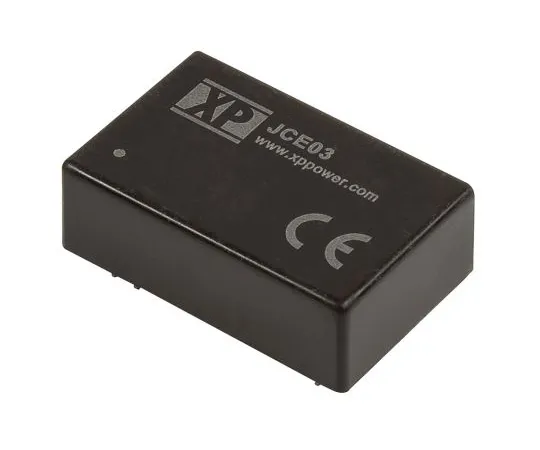

- XP Power-JCE03 Series Insulated DC-DC Converters
- The XP Power JCE03 series is a reliable, fully stable, single/dual output 3W insulated DC-DC converter. This series has a breakdown voltage of 1500 V dc (3000 V dc option available) and is packaged in the industry standard DIP 24 package. These compact DC-DC converters offer a 2:1 input range, no minimum load requirements, and a wide operating temperature range of 40 to +90 °C, making them an ideal option for commercial and industrial hosts.
- 3 W, Insulated DC-DC Converter Insulated Voltage 1500 V dc with 3000 V dc Option Stable Single/Dual Output Industry Standard DIP24 Package No Minimum Load Condition Wide Operating Temperature Range: -40 → +90 °C
Spec
- Quantity: 1 piece
- Output Voltage: ± 24 V dc
- Input voltage range: 18 to 36 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 1.5 kV dc
- Rating Power: 3W
- Output current: ± 63 mA
- Mounting type: through hole
- Number of outputs: 2
- Efficiency: 81%
- Package: DIP 24
- Road regulation: ± 1.2%
- Maximum temperature: + 100 degrees C
- Depth: 10.16 mm
- RoHS compliance status: Compliance
- Securities Code: 122 -6184
