Features

• User Manual (CD), Power Cord, Test Lead

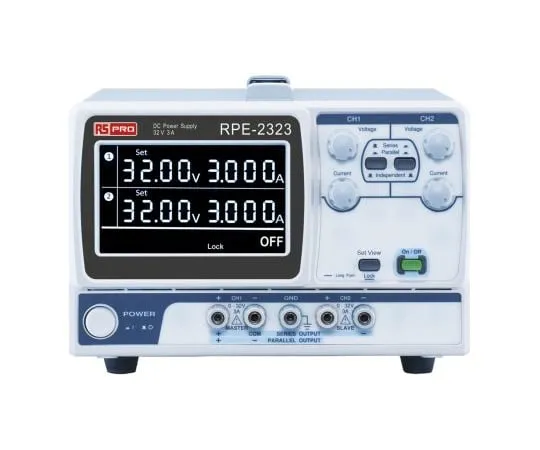

• RS Pro RPE Series Linear DC Power Supply
• RS Pro RPE Series is an economical, state-of-the-art linear DC power supply.　The output power is 192 to 217 watts (dep***ing on the model).　Features of this series include high resolution, low noise, high reliability, and compact size.　A unique digital panel control is built-in, and functions such as setting display and key lock are included.　This key lock function protects the DUT by preventing the voltage and current parameters from being changed.　The output key illumination provides a clear indication of the operating status of the power supply.　In addition to indep***ent output channels, the RS Pro RPE series can automatically track serial and parallel connections.　With this series and parallel connection, the power supply outputs 32 V/6 A (parallel connection) and 64 V/3 A (series connection).　CH1 and CH2 of RPE-2323, RPE-3323 and RPE-4323 models operate the series and parallel connection functions.　The Output On/Off feature protects the DUT from damage that can be ca***d by pre-output when the DUT is connected to a power source.　The operator must preset the voltage and current parameters and ensure that all connections are correct.　Next, enable output on/off by manual control using the front panel.
• 1/2/3/4 separate insulated outputs (dep***ing on model) 4.3 inch LCD setting and readback resolution: 100 mV/10 mA (High resolution is 10 mV/1 mA, see ***r manual setup instructions.) Output on/off Analog control (remote I/O), when output is on/off Use the setting display function to check the original V/I settings when output is on Key lock function Tracking in series and parallel operation Achieves low noise in smart cooling fans Dimensions: 210 x 155 x 306 mm Weight: approx. 7 kg
• Features and benefits:
