63-6834-59 Insulation DC-DC Converter Vout: 12 V dc 43 to 101 V dc 75 W 72 V dc RCQ7572S12
Product Description
Product Model: 63-6834-59Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6834-59
Product Brand: XP Power
Features

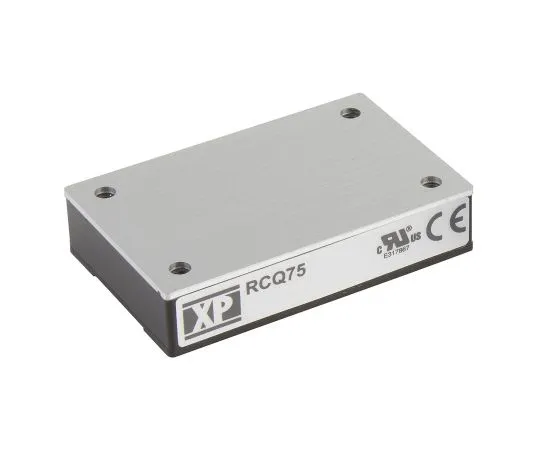

- XP Power-RCQ75 Series DC-DC Converter
- XP Power's RCQ75 series is a highly reliable 75 W insulated DC-DC converter. This adjustable single output series features 3000 V ac insulation and is designed to comply with EN50155 and IEC60571 and meet EN50121-3-2 EMC standards.
- 75 W 3000 V ac Insulated single output 72 V dc and 110 V dc (for railway applications) Operating temperature: -40 → +100 °C Remote on/off and remote sense EN50121-3-2 EMC standards compliant EN50155 and IEC60571
Spec
- Quantity: 1 piece
- Output Voltage: 12 V dc
- Input voltage range: 43 to 101 V dc
- Input voltage nominal: 72 V dc
- insulation Voltage: 3 (Minimum) kV ac
- Rating Power: 75 W
- Output Current: 6.25 A
- Mounting type: through hole
- Number of outputs: 1
- Medical standards certification: None
- Approved for rail ***: Yes
- Road regulation: ± 0.3%
- Maximum temperature: + 105 degrees C
- Series: RCQ 75
- RoHS compliance status: Compliance
- Securities Code: 122 -4535
