Electronic/Electrical Parts and Controll Equipments

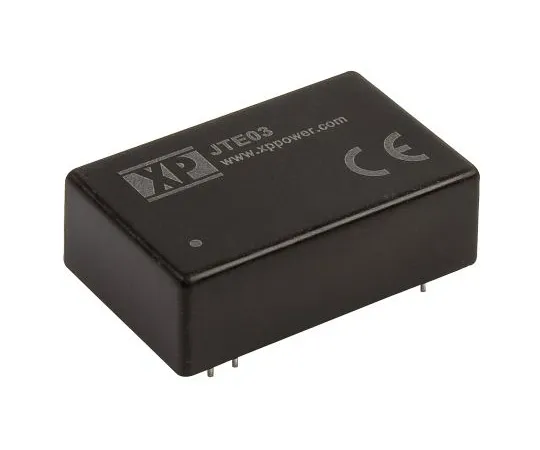

63-6833-85 Insulation DC-DC Converter Vout: ± 3.3 V dc 9 to 36 V dc 3 W 24 V dc JTE0324D03
Product Description
Product Model: 63-6833-85Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6833-85
Product Brand: XP Power
Features
- XP EMCO-JTE03 Series DC-DC Converter
- XP Power's JTE03 series is a highly reliable 3W fully adjustable DC-DC converter. Designed in the industry-standard footprint DIP-24 plastic case, it features a very wide input voltage range of 4:1. There is no minimum load required for these DC-DC converter products. It also comes with a 3-year warranty as standard.
- 3 W 1500 V dc insulation, 3000 V dc option available 4:1 input range single/dual output No minimum load DIP24 plastic case Operating temperature: -40 → +100 °C Fully adjustable output
Spec
- Quantity: 1 piece
- Output Voltage: ± 3.3 V dc
- Input voltage range: 9 to 36 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 1500 V dc
- Rating Power: 3W
- Output current: ± 450 mA
- Mounting type: through hole
- Number of outputs: 2
- Efficiency: 75%
- Package: DIP 24
- Road regulation: ± 1.2%
- Maximum temperature: + 100 degrees C
- Series: JTE03
- RoHS compliance status: Compliance
- Securities Code: 122 -4462
