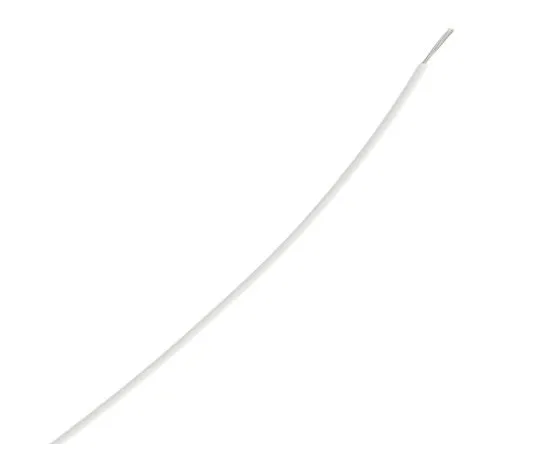

63-6782-97 Environmental Cable 100 mAWG 24 AWG M2275934-24-9
model:
63-6782-97
brand:
TE Connectivity
Product Description
Product Model: 63-6782-97Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-6782-97
Product Brand: TE Connectivity
Features
- TE Connectivity M22759 Harsh Environment Wire
- The M22759 wire is ideal for a wide range of commercial and military aerospace or ground system applications. This wire has the best features for harsh environments. The airframe wire is double-layer insulated.
- Features and Benefits:; Small Diameter; Low emission of fumes and corrosive gases; Chemical resistance, electric arc tracking resistance; cross-link insulation; robust physical properties; High temperature rating: +150 °C (maximum); Stranded Tin Plated Copper Conductor; cross-linked ETFE insulation
Spec
- Quantity: 1 reel (100 meters)
- Cross-sectional area: 0.22 mm 2
- Sheath color: white
- AWG American Wire Gauge Standard: 24 AWG
- Insulation: ETFE
- Core Strand: 19/36 AWG
- Operating temperature Min: -65 degrees C
- Operating temperature Max: + 150 degrees C
- Operating temperature range: -65 to + 150 degrees C
- Length: 100 m
- Outer diameter: 1.14 mm
- Allowable Voltage: 600 V ac
- Number of strands: 19
- RoHS compliance status: Compliance
- Securities Code: 113 -5826
