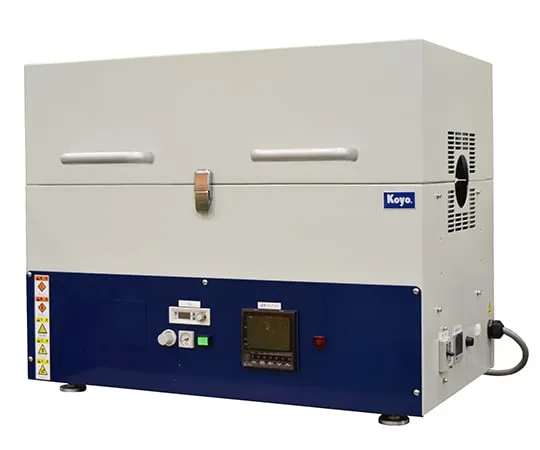

64-7755-24 Tube Furnace KTF 1200°C Series (1 Zone Control Type) W410 x H495 x D282mm KTF035N2
Product Description
Product Model: 64-7755-24Product Brand: Koyo Thermo Sys […]
Contact Us
Product Details
Product Model: 64-7755-24
Product Brand: Koyo Thermo Systems Co., Ltd.
Features
- A 1-zone controlled tube furnace, a standard type for experiments and development with excellent cost performance.
- Uses a half-split heater for easy tube setting.
- The temperature programmer control type can be set in two patterns.
- Safety design with safety devices such as thermocouple disconnection (heater circuit OFF during operation), overheat prevention meter (heater circuit OFF during operation) and heating chamber open detection switch (heater circuit OFF during operation).
Spec
- specifications: temperature programmer control
- External Dimensions (mm): 410 x 282 x 495
- Furnace Inner Dimensions (mm): 28 x 300
- Applicable Tube Outer Diameter (mm): φ25
- Maximum Operating Temperature: 1200°C (Heater temperature can be raised)
- Normal Operating Temperature Range: 400~1100°C
- Uniform heat length: 80 mm
- temperature control: temperature programmer
- Indication accuracy: ± (0.3% of set value +1dijit)
- Adjustment operation: PID control with auto-tuning, SSR drive system
- Control method: 1 zone control
- Overheating meter: 1 zone control
- Heater output: 850 W
- Thermocouple: PL-II
- Power: 100 VAC 10 A 50/60Hz
- Weight: 25 kg
- Power cable (included): 3 m grounded outlet plug
- *The core tube is not attached to the main body.
