Features

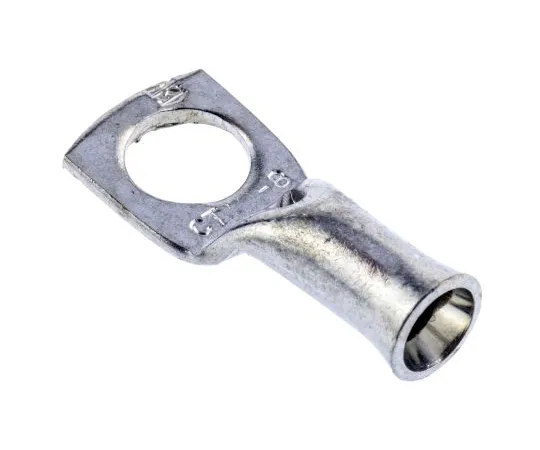

• RS PRO Non-Insulated Heavy-Duty Round Crimping Terminal: A high-quality RS PRO Series heavy-duty tube round crimping terminal, also known as a ring connector or cable lug. Heavy-duty round crimp terminals are ***d to connect stranded cables to studs or posts in electrical components such as battery terminals. This round tube terminal is made of thick-walled, heavy-duty, highly conductive copper and is tin plated. When this link terminal is properly crimped to the cable, it provides a safe and reliable electrical connection.
• Features and Advantages: Robust, Thick-Walled Design Closed Barrel Secures Crimping Terminals Around Cable Copper Body Material Has High Conductivity and Easy Crimping Tin Plating Crimping Terminals Improves Corrosion Resistance and Strength, Reduces Friction, and Easily Solders Wire Insertion Funnel-Type Internal Barrel Application: Use uninsulated wire terminals when there is no risk of accidental contact and short-circuiting connections. These crimp ring wire connectors are ***d to connect stranded power cables to electrical components for heavy-duty applications in various industries. Applications include cabling for industrial control systems, industrial machinery, automobiles, communications equipment, power supplies, and ho***hold appliances.
• Selecting the Right Size Round Terminal
• The following points should be considered when selecting a round terminal suitable for your application.
• Wire gauge mm (metric method) or AWG (American wire gauge standard) of the wire or cable being ***d Size of stud connecting round terminal Inner diameter of round terminal
• Method of crimping round terminal
• First, select the correct size round terminal. Remove the *** of the wire and cut it so that it is the same length as the terminal. Insert the wire into the terminal barrel so that the bare wire is not visible. You are now ready to crimp the crimp terminal to the *** of the cable using the appropriate crimp tool. These include heavy duty ratcheting and hydraulic crimping tools. The handle of the ratchet tool remains locked until the crimp cycle is complete, preventing premature crimping. Simply insert the barrel of the round terminal into the appropriate crimp. Squeeze the tool handle until it is released by the ratchet mechanism. When a heavy-duty hydraulic crimping tool is ***d, the crimping cycle is completed with a click sound when the crimping force is fully applied. The round crimp terminal can now be placed on the stud or post and secured in place by nuts or soldering.
