Electronic/Electrical Parts and Controll Equipments

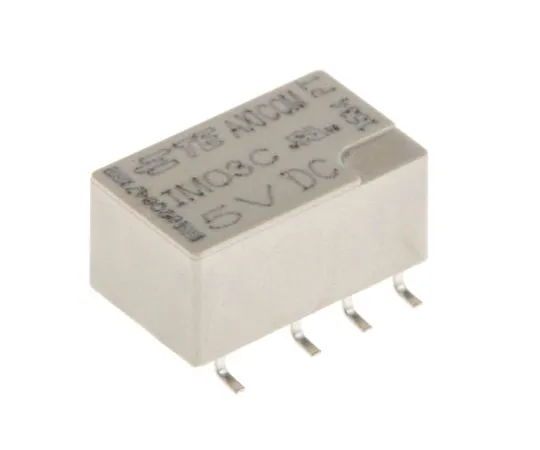

63-6690-46 Relay 5V dc2c Contact 2A Substrate Mounting IM03CGR
model:
63-6690-46
brand:
TE Connectivity
Product Description
Product Model: 63-6690-46Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-6690-46
Product Brand: TE Connectivity
Features
- UL
- Communication/Signal Relay IM Series
- Thin and Low Profile -10 x 6 x 5.65 mm Gullwing SMT Leg Branch Contact, Gold Plated Hermetic Shield (RT V), IP67 High Mechanical Impact Resistance up to 300 G (Functional) and 500 G (Remaining) Insulation Resistance (500 Vdc >10 9 Ω) High Surge Support - Telcordia TR-NWT-001089 (2/10 μs) & EC 60950 (10/700 μs)
Spec
- Number of pieces: 1
- Coil voltage: 5V dc
- Contact configuration: DPDT
- Mounting Type: Board Mounting
- Terminal Type: Surface Mount
- Coil resistance: 178 ohms
- Application Type: Signal
- Length: 10 mm
- Depth: 7.5 mm
- Height: 5.65 mm
- Dimensions: 10 x 7.5 x 5.65 mm
- Operating temperature Max: + 85 degrees C
- RoHS compliance status: Compliance
- Securities Code: 515 -482
