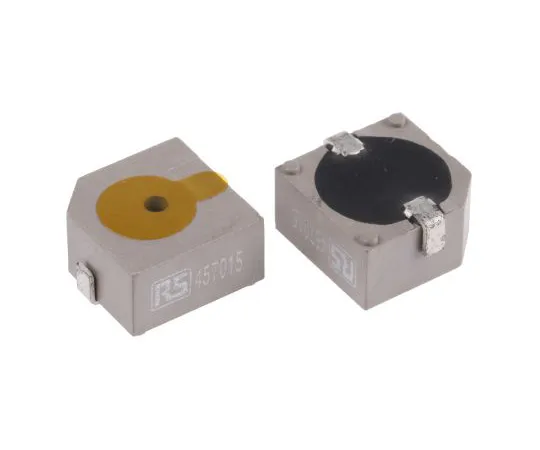

63-6653-71 RS PRO 85dB, SMD Square Wave External Piezo Buzzer 457-015
Product Description
Product Model: 63-6653-71Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6653-71
Product Brand: RS PRO
Features
- Square SMT Magnetic Transducer
- Square Case SMT Magnetic Transducer High Audio Output Operation Requires External Drive Circuit
Spec
- Mounting Type:Surface Mount
- Minimum Supply Voltage:8V
- Maximum Supply Voltage:16V
- Sound Level:85dB
- Drive Type:External
- Tone Type:Square Wave
- Length:12.8mm
- Depth:12.8mm
- Height:6.5mm
- Dimensions:12.8 x 12.8 x 6.5mm
- Minimum Operating Temperature:-20°C
- Maximum Operating Temperature:+70°C
- Maximum Frequency:2.8kHz
- Supply Current:40mA
- CODE No.:457-015
