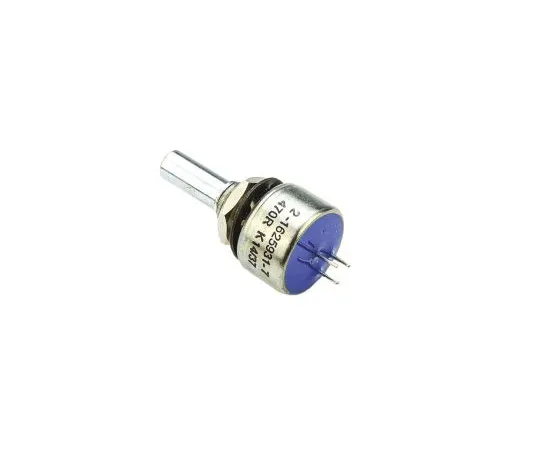

63-6565-51 Potentiometer 470 ohm 2 W 404802692034
model:
63-6565-51
brand:
TE Connectivity
Product Description
Product Model: 63-6565-51Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-6565-51
Product Brand: TE Connectivity
Features
- Metal Lock Washer, Nut
- 21 mm M Series
- Solid Structure with Alloy Housing High Rated Power (2 W @70 °C) Carbon Brush Wiper Metal Bush and Shaft Tolerance ± 10% 270 ° Rotation Operating Temperature: -55 → +125°C
Spec
- Number of pieces: 1
- Potentiometer Type: Rotary
- Maximum resistance: 470 ohms
- Number of gangs: 1
- Speed: 1
- Rated power: 2W
- Electric taper: linear
- Element Material: Cermet
- Mounting Type: Panel Mount
- termination styles: pins
- Shaft length: 25.4 mm
- Shaft diameter: 6.35 mm
- Height: 43 mm
- Tolerance: +/- 10%
- Diameter: 19.03 mm
- RoHS compliance status: Compliance
- Securities Code: 162 -798
