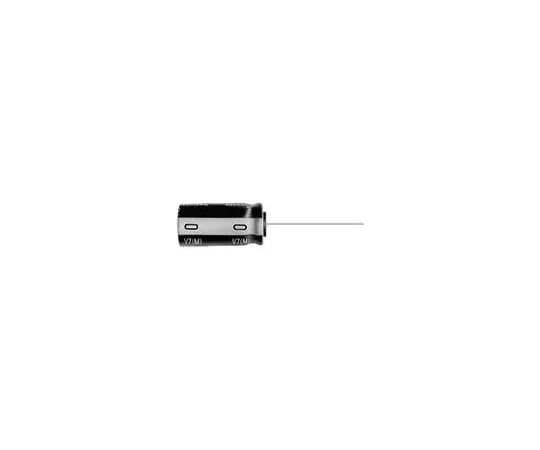

63-5144-62 Nichicon 330μF 100V dc Aluminium Electrolytic Capacitor, Through Hole 12.5 (Dia.) x 25mm +105°C 12.5mm 5mm UVZ2A331MHD
Product Description
Product Model: 63-5144-62Product Brand: NICHICON Featur […]
Contact Us
Product Details
Product Model: 63-5144-62
Product Brand: NICHICON
Features
- Nichicon VZ Series, 24μF to 22000. Nichicon VZ series aluminium electrolytic capacitors are miniature sized, low impedance, high reliability capacitors for switching power supplies. The VZ series is highly reliable with a lifetime rating of up to 1000 hours. High reliability High temperature range High ripple current
Spec
- Quantity：1bag(5pieces)
- Capacitance : 330µF
- Voltage : 100V dc
- Mounting Type : Through Hole
- Technology : Electrolytic
- Dimensions : 12.5 (Dia.) x 25mm
- Height : 25mm
- Minimum Operating Temperature : -55°C
- Diameter : 12.5mm
- Maximum Operating Temperature : +105°C
- Lead Pitch : 5mm
- Series : VZ
- Ripple Current : 540mA
- CODE No.:845-4893
