Electronic/Electrical Parts and Controll Equipments

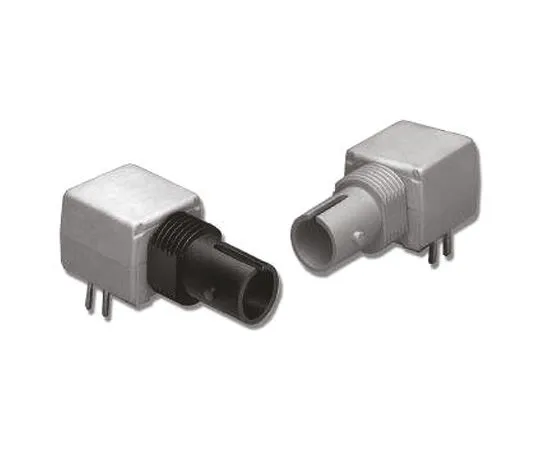

63-5141-59 Broadcom HFBR-1414TZ, 160MBd Fibre Optic Transmitter 865nm, Round ST Connector, 27.2 x 12.7 x 10.2mm HFBR-1414TZ
Product Description
Product Model: 63-5141-59Product Brand: Broadcom Featur […]
Contact Us
Product Details
Product Model: 63-5141-59
Product Brand: Broadcom
Features
- HFBR-0400TZ Series Miniature Link Components. The HFBR-x4xxTZ series, from Avago Technologies, are miniature link components with the threaded ST port option. They come with 5.1mm (0.2 inch) of 3/8-32 UNEF-2A threads on the port. Components with the threaded ST port have the same high electrical, optical and mechnical performance as that of the base components. The HFBR-x4xxTZ devices are suitable for panel mounting to chassis walls with a maximum thickness of 2.8mm (0.11 inch) when using nuts and washers from the kit.. Features of the HFBR-x4xxTZ series: - Threading enables ST styled port components to be panel mounted - Compatible with current ST multimode connectors
Spec
- Quantity：1piece
- Maximum Data Rate : 160MBd
- Connector Shape : Round
- Typical Rise Time : 6.5ns
- Typical Fall Time : 6.5ns
- Peak Wavelength : 865nm
- Mounting Type : Through Hole
- Number of Pins : 8
- Dimensions : 27.2 x 12.7 x 10.2mm
- Connector Type : ST
- Height : 10.2mm
- Length : 27.2mm
- Width : 12.7mm
- CODE No.:841-5028
