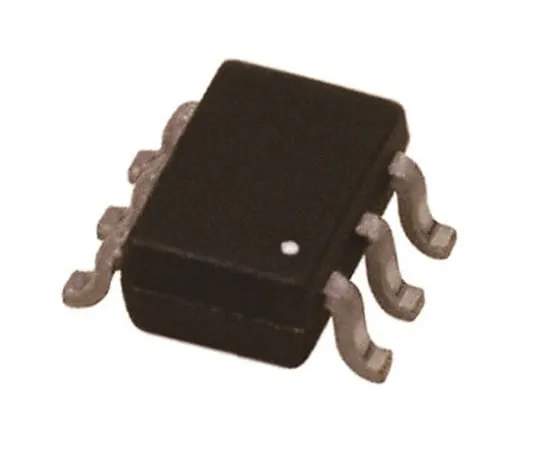

63-5139-90 Broadcom, ACPL-P346-000E IGBT Gate Drive, MOSFET Output Optocoupler, Surface Mount, 6-Pin SO ACPL-P346-000E
Product Description
Product Model: 63-5139-90Product Brand: Broadcom Featur […]
Contact Us
Product Details
Product Model: 63-5139-90
Product Brand: Broadcom
Features
- Isolated Gate Driver Optocouplers, Avago Technologies. The Avago Technologies optically isolated gate drive devices are optimised for driving IGBT and Power MOSFET transistors. The optocouplers exhibit rail-to-rail output, fast gate switching speed, high Common Mode Rejection (CMR) and reinforced insulation. Avago Technologies R2Coupler™ isolation products provide the reinforced insulation and reliability needed for critical automotive and high temperature applications. The isolated gate driver optocouplers are ideal for *** in motor control and power conversion applications. This is a solution where the logic signals is isolated and protected from high voltages.
Spec
- Quantity：1bag(2pieces)
- Mounting Type : Surface Mount
- Output Device : IGBT Gate Drive, MOSFET
- Maximum Forward Voltage : 1.95V
- Number of Channels : 1
- Number of Pins : 6
- Package Type : SO
- Typical Rise Time : 30ns
- Maximum Input Current : 25 mA
- Isolation Voltage : 3750 Vrms
- Logic Output : Yes
- Typical Fall Time : 30ns
- CODE No.:830-4997
