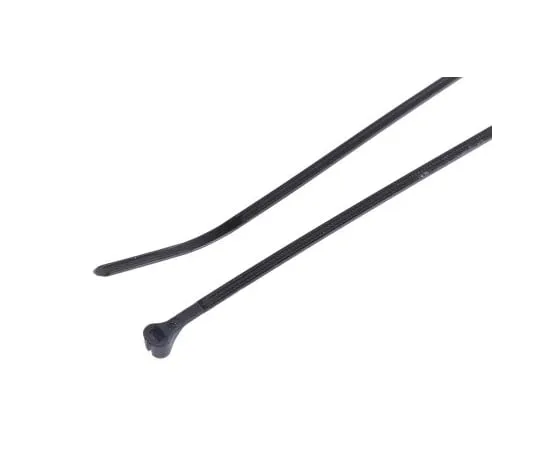

                                                            63-5130-76 Thomas & Betts, Ty-Rap Series Black Nylon Weather Resistant Cable Tie, 203.2mm x 2.29 mm TY232MX
                                    model:
                                    63-5130-76


                                    brand:
                                    Thomas & Betts


                                                            Product Description
Product Model: 63-5130-76Product Brand: Thomas & Be […]
Contact Us
Product Details
Product Model: 63-5130-76
Product Brand: Thomas & Betts
   Features

- UL, GL, Lloyd's Register, Bureau Veritas. Ty-Fast® Polyamide 6.6 Cable Ties, UV-resistant, Black. Ty-Fast® Polyamide 6.6 cable ties are premium cable ties with stainless steel (marine grade) locking barbs that anchor inside the head. This ensures a strong, reliable and long-lasting fastening under adverse conditions. These versions are UV-resistant, especially recomm***ed for outdoor applications. Rounded edges on the head and strap provide comfortable handling and eliminate the sharp edges that otherwise damage the cables. Gradual transition from strap to head protects against breakage at the head: strap junction. The notchless body reduces stress concentration points, making these Ty-Rap® ties stronger and more sl***er than conventional ties with notched bodies. The low profile design of the head facilitates secure tying in tight spaces. No serration means infinite adjustment, tensioned right every time. Stippled surfaces prevent the tie from slipping around and along the bundle, under vibration conditions or external shock. An angled (turned up) tail not only simplifies and speeds up insertion into the locking head but also facilitates pickup from a flat work area. Features and Benefits. UV-resistant, especially recomm***ed for outdoor applications Black version 2% carbon for military specifications Moulding Polyamide 6.6 Locking barb 316 grade stainless steel Temperature range -40°C to +85°C Flammability rating UL 94 V-2 Halogen-free Silicon-free
   Spec

- Quantity:1bag(1000pieces)
- Length : 203.2mm
- Width : 2.29 mm
- Colour : Black
- Material : Nylon 66
- Type : Weather Resistant
- Quantity : 1000
- UV Resistant : Yes
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +85°C
- Series : Ty-Rap
- Tensile Strength : 80.07N
- Maximum Bundle Diameter : 50.8mm
- CODE No.:818-6975
