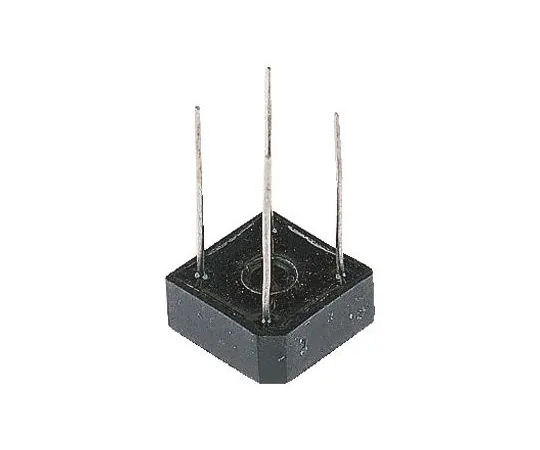

63-5130-05 Vishay VS-KBPC806PBF, Bridge Rectifier, 8A 600V, 4-Pin D 72 VS-KBPC806PBF
Product Description
Product Model: 63-5130-05Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-5130-05
Product Brand: Vishay
Features
- Bridge Rectifiers with Wire Leads, KBPC Series, Vishay Semiconductor. Single-Phase High Power Bridge Rectifiers Suitable for printed circuit board or chasis mounting Compact construction High surge current capability Wire Lead structure for Printed Circuit Board (PCB) through hole mounting
Spec
- Quantity：1bag(5pieces)
- Bridge Type : Single Phase
- Peak Average Forward Current : 8A
- Peak Reverse Repetitive Voltage : 600V
- Mounting Type : Through Hole
- Package Type : D 72
- Pin Count : 4
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 137A
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -55 °C
- Peak Forward Voltage : 1V
- Peak Reverse Current : 100mA
- Length : 15.75mm
- Width : 15.75mm
- CODE No.:817-2617
