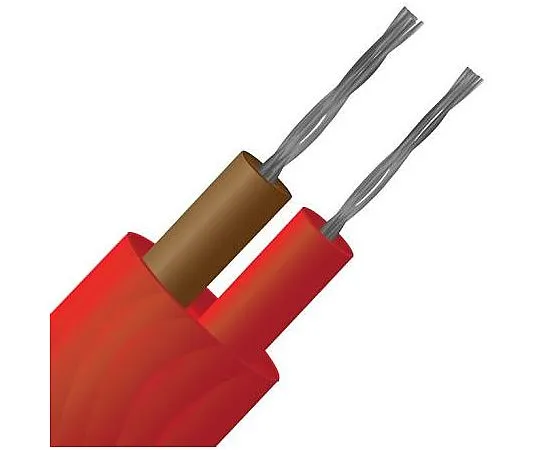

63-5127-78 Thermocouple & Extension Wire Type VX, -10 → +105 °C 2 Core PVC Sheath 200m 814-0115
Product Description
Product Model: 63-5127-78Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5127-78
Product Brand: RS PRO
Features
- PVC Flat Pair Thermocouple Cables. Stranded conductors available, either 7/0.2mm, 13/0.2mm or 23/0.2mm Compensating types VX (KCB) ; U (RCA) for types K ; R/S thermocouples respectively Insulation rating -10°C to 105°C. These PVC insulated flat pair extension and compensating cables are available for thermocouple types E, J, K, T ; N. The general purpose thermocouple cables are both highly flexible and waterproof. Also available in 10m, 25m, 100m and 200m lengths.
Spec
- Quantity：1piece
- Thermocouple Type : VX
- Number of Cores : 2
- Length : 200m
- Minimum Operating Temperature : -10°C
- Maximum Operating Temperature : 105°C
- Core Strands : 7/0.2 mm
- Insulation Material : PVC
- Cable Shape : Flat Pair
- Number of Strands : 7
- Size of Strands : 0.2 mm
- Standards Met : ANSI MC96.1, RoHS Compliant
- CODE No.:814-0115
