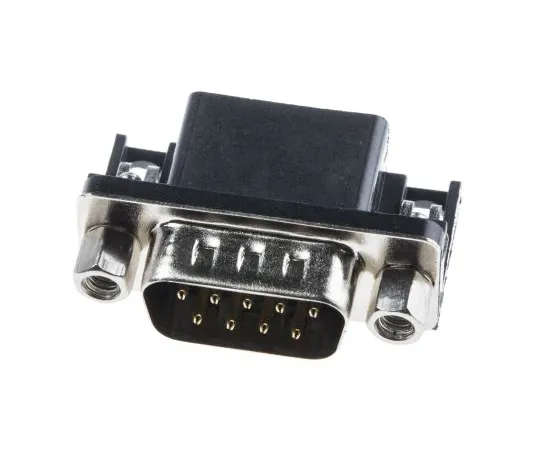

63-5125-10 RS Pro 9 Way Right Angle PCB D-sub Connector Plug, 2.77mm Pitch, with 4-40 UNC Screwlocks 811-7115
Product Description
Product Model: 63-5125-10Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5125-10
Product Brand: RS PRO
Features
- PCB D-Sub Connectors. A range of Right Angle PCB mount D-Sub connectors with: Nickel plated steel shells, Black Glass-Filled Thermoplastic PBT UL 94V-0 insert, Brass Gold flash plated stamped contacts, Brass Tin plated grounding hook boardlocks, Brass Nickel plated M3 threaded screwlocks installed and 9.4 mm footprint.
Spec
- Quantity：1piece
- Number of Contacts : 9
- G***er : Male
- Body Orientation : Right Angle
- Mounting Type : PCB Mount
- Pitch : 2.77mm
- Mounting Hardware : 4-40 UNC Screwlocks
- Current Rating : 3A
- Housing Material : Glass Fibre Reinforced PBT
- Voltage Rating : 250 V ac
- Length : 30.81mm
- Width : 20.9mm
- Depth : 12.55mm
- Dimensions : 30.81 x 20.9 x 12.55mm
- Series Number : 107
- CODE No.:811-7115
