Features

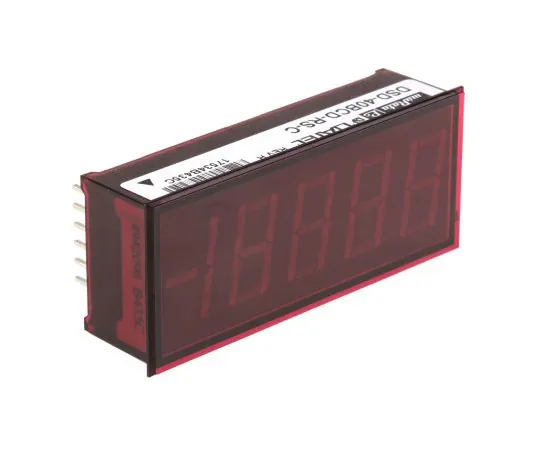

• DSD-40BCD - BCD Input, Slave LED Display. The DSD-40BCD digital slave display combines a full-size 4.5 digit LED display with all the other necessary components, including a built-in, contrast-enhancing filter/bezel, to implement a pc-board mountable instrument display. The flexible design gives the ***r full control of all major display functions including display update rate, number of digits enabled, and decimal point selection. Its TTL-compatible inputs interface directly with most BCD output, integrating analog-to-digital converters, no additional glue logic is required. When ***d with sophisticated microcomputers, the brightness of any digit can be indep***ently controlled by simply lowering the digit-drive input duty cycle. Digital slave display, BCD input, with 4.5 digit display Large 13.2 mm LED display Choice of red or green LED Single +5 V power supply (175 mW) Epoxy-encapsulated in a 24-pin package Minus sign and decimal points included No external components required PC-board or panel mountable Ideal for computer-based instruments Miniature size with 55x23x14 mm
