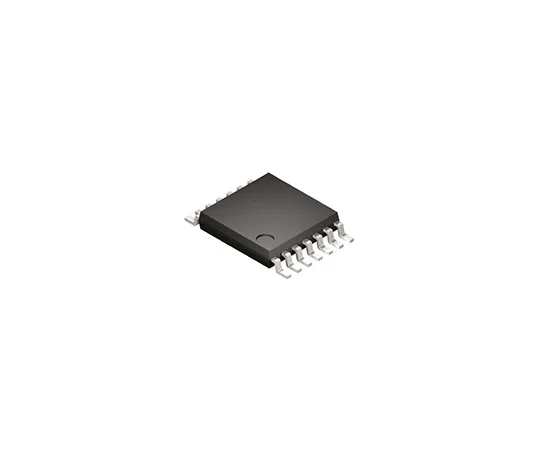

63-5110-12 LMV324IPT STMicroelectronics, Low Power, Op Amp, RRIO, 1.3MHz 100 kHz, 2.7 → 6 V, 14-Pin TSSOP LMV324IPT
model:
63-5110-12
brand:
STMicroelectronics
Product Description
Product Model: 63-5110-12Product Brand: STMicroelectron […]
Contact Us
Product Details
Product Model: 63-5110-12
Product Brand: STMicroelectronics
Features
- LMV321, LMV324, LMV358, Low Power Rail-to-Rail Input/Output Operational Amplifiers. The LMV321 (single), LMV358 (dual) and LMV324 (quad) are general purpose operational amplifiers. With such a low consumption and a sufficient Gain Bandwidth Product (GBP), they find applications in circuits of battery supplied and portable equipment. Power supply operation from 2.7 V to 6 V Rail-to-Rail input and output Low supply current: 145 μA Gain bandwidth product: 1 MHz Electrostatic Discharge (ESD) tolerance: 2 kV
Spec
- Quantity：1bag(10pieces)
- Amplifier Type : Low Power
- Mounting Type : Surface Mount
- Package Type : TSSOP
- Power Supply Type : Single
- Number of Channels per Chip : 4
- Pin Count : 14
- Typical Single Supply Voltage : 2.7 → 6 V
- Typical Gain Bandwidth Product : 1.3MHz
- Typical Slew Rate : 0.45V/µs
- Maximum Operating Frequency : 100 kHz
- Minimum Operating Temperature : -40 °C
- Height : 1.05mm
- CODE No.:795-6922
