63-5107-02 Male IEC/EN 60601-1 IEC Filter Panel Mount 5 x 20mm,Faston,Rated At 10A,250 V ac Operating Frequency 50 → 400Hz FN9290-10-06
Electronic/Electrical Parts and Controll Equipments

63-5107-02 Male IEC/EN 60601-1 IEC Filter Panel Mount 5 x 20mm,Faston,Rated At 10A,250 V ac Operating Frequency 50 → 400Hz FN9290-10-06

model: 63-5107-02
brand: Schaffner

Product Description

Product Model: 63-5107-02Product Brand: Schaffner Featu […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5107-02
Product Brand: Schaffner

Features

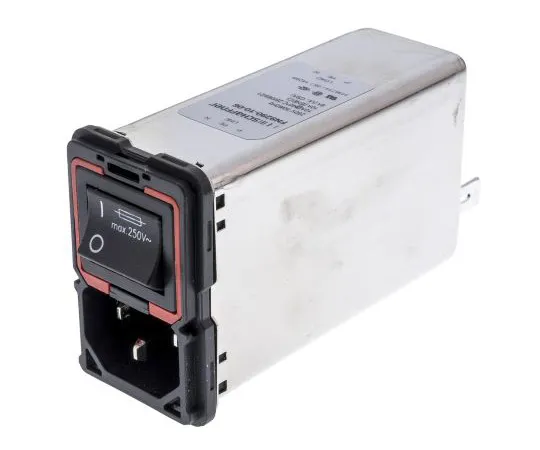

  • FN9280 ; FN9290 - IEC Inlet Filter. The FN9280 ; FN9290 series ultra-compact shielded IEC inlet filters with a combined dual f*** holder and 2-pole rocker switch. The flange mounting variant is supplied with a kit to fascinate either front or rear mounting using either a horizontal or vertical mounting plate. Applications for the FN9280 ; FN9290 series include: portable electrical and electronic equipment; consumer goods; EDP and office equipment; single-phase power supplies; switch-mode power supplies; test and measurement equipment. Single stage filter Good attenuation performance Shielded construction to give protection from magnetic fields Compact housing incorporating a dual f*** holder and a 2-pole rocker switch Flange version supplied with horizontal and vertical screw positioned mounting plates which can be fitted to allow front or rear mounting Snap-in version also available Faston terminals

Spec

  • Quantity:1piece
  • G***er : Male
  • Number of F***s : 2
  • F*** Size : 5 x 20mm
  • Switch Type : 2 Pole
  • Termination Method : Faston
  • Current Rating : 10A
  • Voltage Rating : 250 V ac
  • Mounting Type : Panel Mount
  • Operating Frequency : 50 → 400Hz
  • IEC Connector Type : IEC/EN 60601-1
  • Width : 32mm
  • Depth : 80.6mm
  • Height : 49.8mm
  • CODE No.:792-3026
