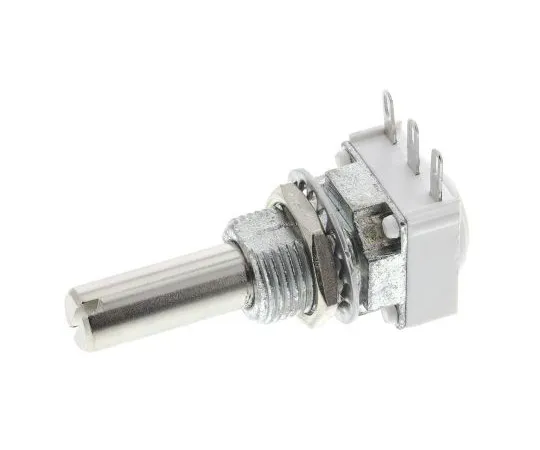

63-5105-61 Vishay 1 Gang Rotary Cermet Potentiometer with a 6 mm Dia. Shaft, 10kΩ, ±10%, 1W, Linear P11S1V0FLSY00103KA P11S1V0FLSY00103KA
Product Description
Product Model: 63-5105-61Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-5105-61
Product Brand: Vishay
Features
- CECC 41301-004; NFC 83253; LNZ, GAM T1. metal lock washer and nut. 12mm P11 Series. Cermet track potentiometer with metal body and shaft Panel mounting, solder pin connection Single or double linear & logarithmic models Insulation resistance >1000GΩ at 500Vdc Environmental class 55/125/56 Enclosures class IP64 Linear tracks rated 1W, log tracks 0.5W
Spec
- Quantity：1piece
- Potentiometer Type : Rotary
- Maximum Resistance : 10kΩ
- Number of Gangs : 1
- Number of Turns : 1
- Power Rating : 1W
- Electrical Taper : Linear
- Element Material : Cermet
- Mounting Type : Panel Mount
- Termination Style : Solder Lug
- Shaft Length : 25mm
- Shaft Diameter : 6 mm
- Tolerance : ±10%
- Actuator Type : Slotted Shaft
- CODE No.:790-4381
