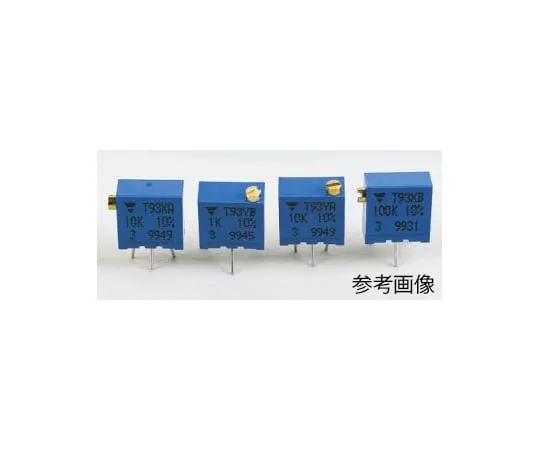

63-5103-21 1kΩ Through Hole Trimmer Potentiometer 0.5W Top Adjust Vishay T93 Series T93YB102KT20
Product Description
Product Model: 63-5103-21Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-5103-21
Product Brand: Vishay
Features
- Multi-turn IP67 sealed cermet trimmers - T93 Series. Vishay Sfernice T93 Series 19 turn cermet trimmers Low variation in contact resistance IP 67 sealed
Spec
- Quantity：1bag(5pieces)
- Maximum Resistance : 1kΩ
- Mounting Type : Through Hole
- Number of Turns : 21
- Orientation : Top Adjust
- Power Rating : 0.5W
- Series : T93
- Termination Style : Pin
- Tolerance : ±10%
- Temperature Coefficient : ±100ppm/°C
- Length : 9.7mm
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +155°C
- CODE No.:788-5108
