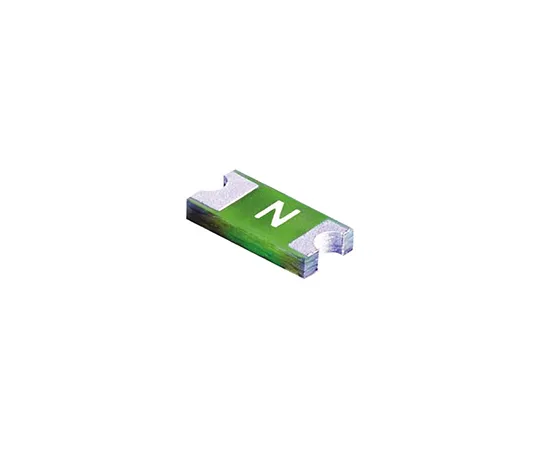

63-5101-19 Littelf*** 5A F Non-Resettable Surface Mount F***, 32V 0466005.NR
Product Description
Product Model: 63-5101-19Product Brand: Littelfuse Feat […]
Contact Us
Product Details
Product Model: 63-5101-19
Product Brand: Littelfuse
Features
- Littelf*** 466 Series SMD F***s. The Littelf*** 466 series of fast-acting surface mount f*** is a small (1206 size) thin-film device designed for secondary protection of circuits ***d in space constrained applications such as hand-held portable electronic devices.
Spec
- Quantity：1bag(5pieces)
- Current Rating : 5A
- Voltage Rating : 32V
- Length : 3.175mm
- Width : 1.524mm
- Height : 0.584mm
- Dimensions : 3.175 x 1.524 x 0.584mm
- F*** Speed : F
- Breaking Capacity at Maximum Voltage Rating : 50 A @ 32 V ac/dc
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +90°C
- Terminal Material : Tin Over Nickel Over Copper
- Operating Temperature Range : -55 → +90 °C
- CODE No.:787-4230
