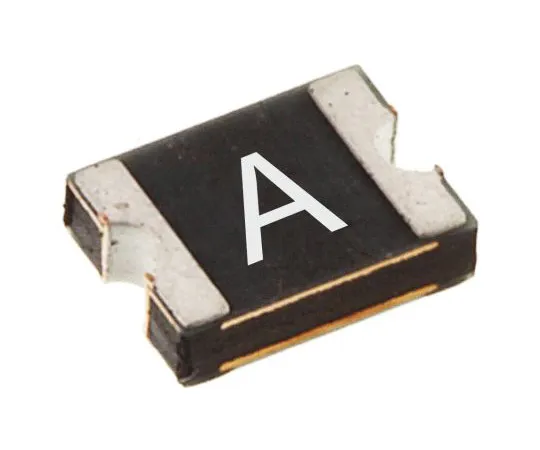

63-5101-09 Littelf*** 0.35A Surface Mount Resettable F***, 16V dc 1206L035/16YR
Product Description
Product Model: 63-5101-09Product Brand: Littelfuse Feat […]
Contact Us
Product Details
Product Model: 63-5101-09
Product Brand: Littelfuse
Features
- Littelf*** POLY-FUSE Resettable PTCs - 1206L Series. The Littelf*** 1206L series PTC provides surface mount overcurrent protection for applications where space is at a premium and resettable protection is desired.
Spec
- Quantity：1bag(10pieces)
- Voltage Rating : 16V dc
- Time to Trip : 0.1s
- Hold Current : 0.35A
- Maximum Current : 100 A
- Length : 3.4mm
- Height : 0.75mm
- Width : 1.8mm
- Terminal Material : Tin Plated Copper
- Minimum Resistance : 0.3Ω
- Maximum Resistance : 1.2Ω
- Power Dissipation : 0.6W
- Minimum Operating Temperature : -40°C
- Package Size : 1206
- Dimensions : 3.4 x 1.8 x 0.75mm
- CODE No.:787-4195
