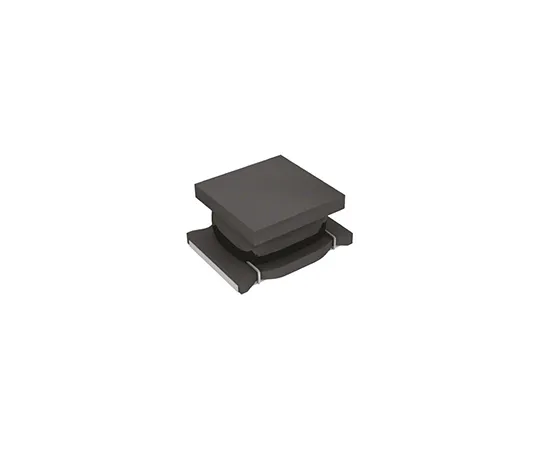

63-5099-17 Murata LQH32P Series Type 1210 (3225M) Shielded Wire-wound SMD Inductor with a Ferrite Core, 22 μH ±20% Wire-Wound LQH32PN220MN0L
Product Description
Product Model: 63-5099-17Product Brand: Murata Features […]
Contact Us
Product Details
Product Model: 63-5099-17
Product Brand: Murata
Features
- Murata 1210 LQH32P Series Magnetically Shielded Wire Wound Chokes. LQH32P series miniature chip inductors with very low DC resistance, high current capacity, and high impedance characteristics. The LQH32P series is magnetically shielded and is suitable for *** as inductors for choke purposes in DC power supply circuits.
Spec
- Quantity：1bag(10pieces)
- Inductance : 22 μH
- Maximum DC Current : 450mA
- Package/Case : 1210 (3225M)
- Length : 3.2mm
- Depth : 2.5mm
- Height : 1.55mm
- Dimensions : 3.2 x 2.5 x 1.55mm
- Shielded : Yes
- Tolerance : ±20%
- Maximum DC Resistance : 972mΩ
- Series : LQH32P
- Core Material : Ferrite
- Maximum Self Resonant Frequency : 20MHz
- Minimum Operating Temperature : -40°C
- CODE No.:786-6876
