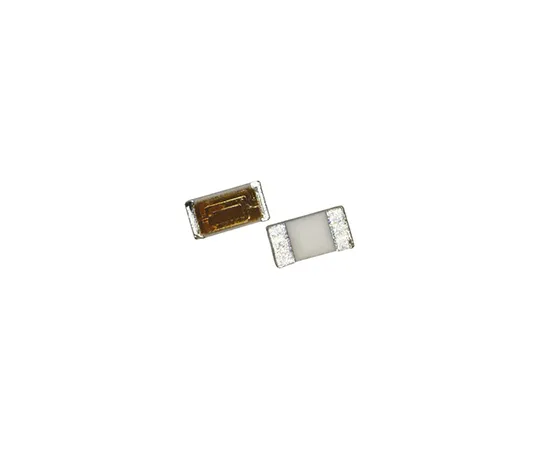

63-5098-01 Murata LQP15M Series 3.3 nH ±0.05nH Ferrite Multilayer SMD Inductor, 0402 (1005M) Case, SRF: 6GHz Q: 13 190mA dc 400mΩ LQP15MN3N3W02D
Product Description
Product Model: 63-5098-01Product Brand: Murata Features […]
Contact Us
Product Details
Product Model: 63-5098-01
Product Brand: Murata
Features
- Murata 0402 LQP15M Series Thin Film Inductors. LQP15M Ultra small low profile chip inductor with film technology construction. Available in various inductance values enabling assembly with no tuning required. High Q at high frequency range High self-resonant frequency due to low stray capacitance and narrow inductance distribution provides stable inductance in high frequency circuits such as telecommunications equipment. Applications:-. High frequency circuits of mobile phones such as PA, ANT, VCO, SAW, etc. Mobile phones "Bluetooth" W-LAN High frequency circuits in general
Spec
- Quantity：1bag(25pieces)
- Series : LQP15M
- Inductance : 3.3 nH
- Tolerance : ±0.05nH
- Maximum DC Current : 190mA
- Maximum Self Resonant Frequency : 6GHz
- Package/Case : 0402 (1005M)
- Maximum DC Resistance : 400mΩ
- Core Material : Ferrite
- Dimensions : 1 x 0.5 x 0.35mm
- Depth : 0.5mm
- Height : 0.35mm
- Length : 1mm
- Maximum Operating Temperature : +85°C
- Minimum Operating Temperature : -40°C
- CODE No.:785-9133
