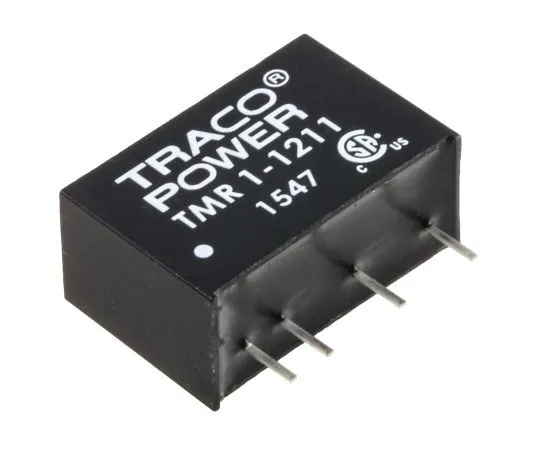

63-5095-11 TRACOPOWER TMR 1 1W Isolated DC-DC Converter Through Hole, Voltage in 9 → 18 V dc, Voltage out 5V dc TMR 1-1211
Product Description
Product Model: 63-5095-11Product Brand: TRACOPOWER Feat […]
Contact Us
Product Details
Product Model: 63-5095-11
Product Brand: TRACOPOWER
Features
- Traco 1W SIP Fully Regulated Isolated DC-DC Converter - TMR 1 Series. The Tracopower TMR 1 series is a compact 1W isolated DC-DC converter in SIP package. The TMR 1 has a wide 2:1 input voltage range and fully regulated outputs. Wide 2:1 input voltage range Fully regulated outputs Operating temperature -40°C to +85°C No minimum load required I/0 isolation 1500 VDC Short circuit protection
Spec
- Quantity：1piece
- Output Voltage : 5V dc
- Input Voltage Range : 9 → 18 V dc
- Input Voltage Nominal : 12 V dc
- Isolation Voltage : 1500V dc
- Power Rating : 1W
- Output Current : 200mA
- Mounting Type : Through Hole
- Number of Outputs : 1
- Efficiency : 78%
- Package : SIP
- Load Regulation : 1%
- Maximum Temperature : +85°C
- Depth : 7.62mm
- CODE No.:781-3190
