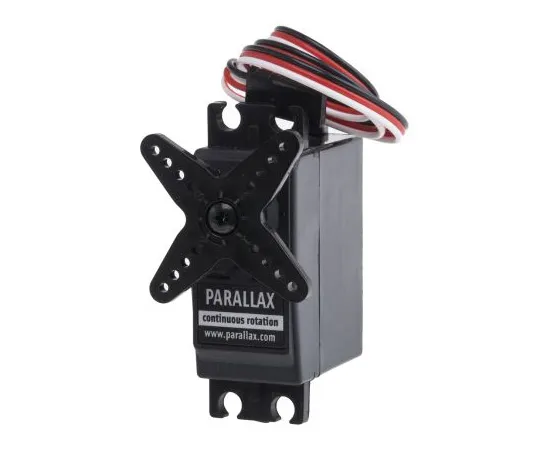

63-5095-04 Parallax Inc Servo Motor, 4 → 6 V, 0 → 50 rpm 900-00008
Product Description
Product Model: 63-5095-04Product Brand: Parallax Inc Fe […]
Contact Us
Product Details
Product Model: 63-5095-04
Product Brand: Parallax Inc
Features
- Assortment of servo horns. R/C servo motor, continuous rotation. The Parallax Continuous Rotation Servomotor is ideal for prototyping mobile (wheeled) robots. It is easily interfaced with any microcontroller able to produce a 50Hz PWM output. Bidirectional continuous rotation. 0 to 50rpm, with linear response to PWM for easy speed ramping. Trim pot to set motor stop. Torque: 38oz-in @ +6V. Standard R/C (hobby) servo mounting and 3-pin connector. Power supply: +4 to +6Vdc, 15 to 200mA. Operating temperature range: -10 to +50°C. Dimensions: 55.8 x 19 x 40.6mm excluding servo horn. Weight: 42.5g
Spec
- Quantity：1piece
- Maximum Output Torque : 38 Oz-in
- Supply Voltage : 4 → 6 V
- Output Speed : 0 → 50 rpm
- Length : 406mm
- Width : 55.8mm
- Depth : 19mm
- Dimensions : 406 x 55.8 x 19 mm
- CODE No.:781-3046
