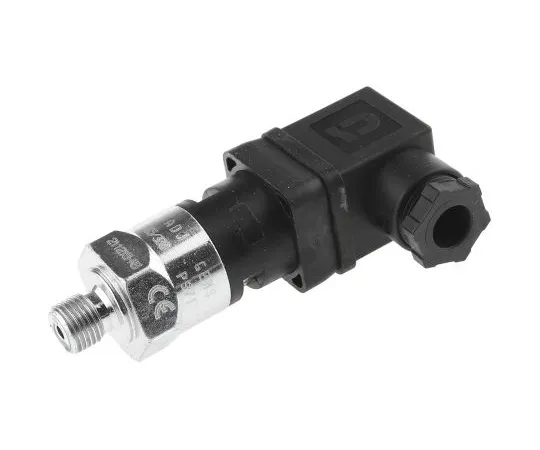

63-5093-52 Gems Sensors Air, Hydraulic Pressure Switch, SPDT 65 → 300psi, 125/250 V, BSP 1/4 process connection PS71-30-4MGZ-C-HC
Product Description
Product Model: 63-5093-52Product Brand: Gems Sensors Fe […]
Contact Us
Product Details
Product Model: 63-5093-52
Product Brand: Gems Sensors
Features
- CE, UL Approved units available. PS71 - General Purpose Mini Pressure Switch. These versatile general purpose switches can be ***d in a wide range of hydraulic and pneumatic applications. Their proven piston/diaphragm design offers outstanding accuracy over a very wide pressure range with an outstanding 6000 psi proof pressure. Gems offers a large number of standard pressure fittings in two materials as well as numerous electrical ratings and terminations. Ranges varying from 10 to 5000 psi (0.7 to 344 bar) - Please check specific pressure range for desired model With snap action microswitches Modular construction This model can be easily configured to meet ***rs needs
Spec
- Quantity：1piece
- Pressure Range : 65 → 300psi
- Media Measured : Air, Hydraulic
- Output Type : SPDT
- Supply Voltage : 125/250 V
- Minimum Pressure Reading : 65psi
- Maximum Pressure Reading : 300psi
- Electrical Connection : Screw Terminals
- Minimum Operating Temperature : -9°C
- Maximum Operating Temperature : +85°C
- Maximum Current : 5 A
- Housing Material : Zinc Plated Steel
- CODE No.:779-4254
