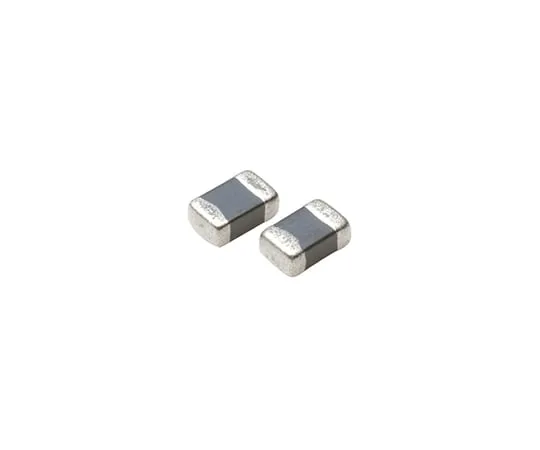

63-5091-30 TDK MLF Series 12 μH ±10% Ferrite Multilayer SMD Inductor, 0805 (2012M) Case, SRF: 45MHz Q: 50 15mA dc 900mΩ Rdc MLF2012E120KT
Product Description
Product Model: 63-5091-30Product Brand: TDK Features TD […]
Contact Us
Product Details
Product Model: 63-5091-30
Product Brand: TDK
Features
- TDK 0805 MLF Series Multilayer Magnetically Screened Inductor. MLF2012 Series Multilayer SMD inductor coils for signal lines. The MLF2012 s inductors have monolithic construction for reliability, a ferrite core and are magnetically shielded. Additionally by virtue of their excellent heat resistance this series of inductors are equally suitable for both flow and reflow soldering as well as lead free soldering. Applications for the MLF2012 series include: Digital cellular phones; tuners; personal computers; audio devices; various electronic appliances
Spec
- Quantity：1set(10pieces)
- Series : MLF
- Inductance : 12 μH
- Tolerance : ±10%
- Maximum DC Current : 15mA
- Minimum Quality Factor : 50
- Package/Case : 0805 (2012M)
- Maximum DC Resistance : 900mΩ
- Core Material : Ferrite
- Dimensions : 2 x 1.25 x 1.25mm
- Depth : 1.25mm
- Height : 1.25mm
- Length : 2mm
- Maximum Operating Temperature : +85°C
- Minimum Operating Temperature : -40°C
- CODE No.:775-4723
