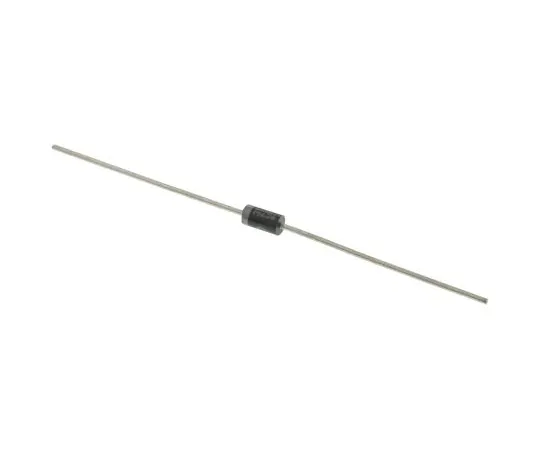

63-5090-29 ON Semi 40V 1A, Schottky Diode, 2-Pin DO-41 1N5819G 1N5819G
model:
63-5090-29
brand:
ON Semiconductor
Product Description
Product Model: 63-5090-29Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-5090-29
Product Brand: ON Semiconductor
Features
- ON Semi 1N5817/8/9 Axial Lead Rectifiers. This series consist of metal-to-silicon power diode. These diodes comes in chrome barrier metal, oxide passivation and metal overlap contact. Benefits:. Extremely Low VF Low Stored Charge Majority Carrier Conduction Low Power Loss/High Efficiency. Features:. Case: Epoxy, Molded Weight: 0.4 Gram Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable Lead Temperature for Soldering Purposes: 260°C Max for 10 Seconds Polarity: Cathode Indicated by Polarity Band. Typical Applications:. High frequency inverters Free wheeling diodes Polarity protection diodes
Spec
- Quantity：1bag(10pieces)
- Diode Configuration : Single
- Number of Elements per Chip : 1
- Peak Reverse Repetitive Voltage : 40V
- Mounting Type : Through Hole
- Package Type : DO-41
- Diode Technology : Schottky
- Pin Count : 2
- Maximum Forward Voltage Drop : 900mV
- Diameter : 2.7mm
- Peak Non-Repetitive Forward Surge Current : 25A
- CODE No.:774-3347
