Electronic/Electrical Parts and Controll Equipments
63-5089-65 EPCOS ACT45B Series Type SMD Wire-wound SMD Inductor with a Ferrite Core, 51 μH -30 → +50% Wire-Wound 200mA Idc B82787C0513H002
Product Description
Product Model: 63-5089-65Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-5089-65
Product Brand: EPCOS
Features

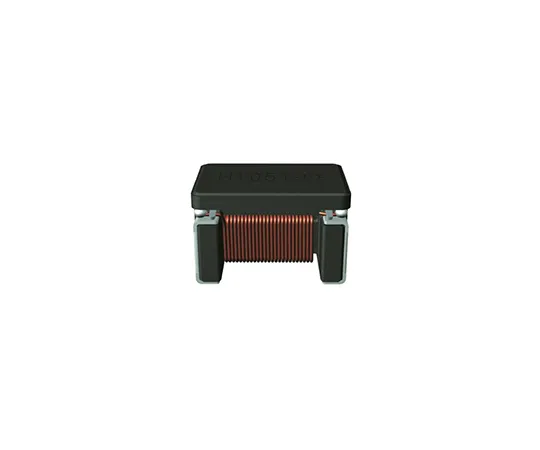

- Epcos 1812 ACT45B Series Common Mode Chokes. From Epcos, these ACT45B series common mode chokes are for data and signal line applications. The ACT45B ‘s are current-compensated double choke chokes with a ferrite core and are designed for Automotive CAN bus system applications. They are suitable for lead-free re-flow soldering as referenced in JEDEC J-STD 020D. Features and Benefits:. Common-mode chokes, EIA 1812 Enamel copper wire winding Winding welded to terminals Qualified to AEC-Q200 RoHS-compatible
Spec
- Quantity：1piece
- Inductance : 51 μH
- Maximum DC Current : 200mA
- Package/Case : SMD
- Length : 4.5mm
- Depth : 3.2mm
- Height : 2.8mm
- Dimensions : 4.5 x 3.2 x 2.8mm
- Tolerance : -30 → +50%
- Maximum DC Resistance : 1Ω
- Series : ACT45B
- Core Material : Ferrite
- Maximum Self Resonant Frequency : 10MHz
- Minimum Operating Temperature : -40°C
- CODE No.:774-0544
