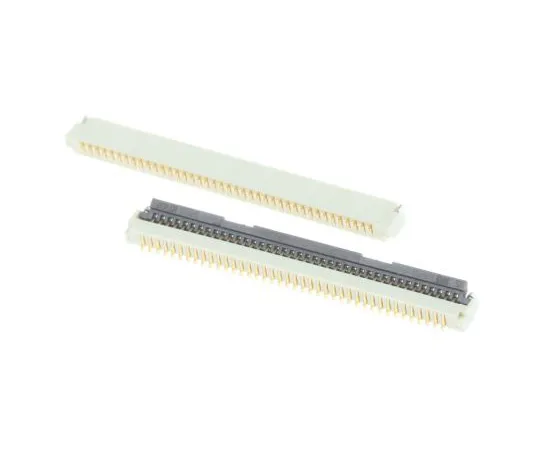

63-5087-96 Hirose FH33 0.5mm Pitch 40 Way Right Angle SMT Female FPC Connector, ZIF Bottom Contact FH33-40S-0.5SH(10)
Electronic/Electrical Parts and Controll Equipments

63-5087-96 Hirose FH33 0.5mm Pitch 40 Way Right Angle SMT Female FPC Connector, ZIF Bottom Contact FH33-40S-0.5SH(10)

model: 63-5087-96
brand: Hirose

Product Description

Product Model: 63-5087-96Product Brand: Hirose Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5087-96
Product Brand: Hirose

Features

  • Hirose FH33 Series 0.5 mm and 1.0 mm FPC/FFC Connectors. FH26 ZIF (zero insertion force) FPC/FFC connectors with a compact design and a low profile height of 1.2 mm. The mounting depth of these FH33 ZIF FPC connectors is just 2.5 mm offering a reduced footprint and significant PCB space saving. A one-touch ZIF rotating actuator allows easy and accurate insertion and secure retention of the FPC. When the actuator is fully closed, it produces a tactile click to confirm it is firmly locked in place. The bottom of these FPC/FFC connectors is solid and the contacts are not exposed allowing the connector to be mounted over conductive traces on the PCB. Features and Benefits. Low profile 1.25 mm height Narrow width of just 2.5 mm for PCB saving Rotating one-touch actuator for easy FPC/FFC insertion and secure retention Tactile click confirms full closure of actuator Accept a standard 0.3 mm thick FPC. Applications. These FH33 FPC/FFC connectors are ideal for *** in miniaturized portable equipment and personal mobile devices.

Spec

  • Quantity:1bag(5pieces)
  • Number of Contacts : 40
  • Contact Material : Phosphor Bronze
  • Pitch : 0.5mm
  • Mounting Type : Surface Mount
  • G***er : Female
  • Termination Type : ZIF Bottom Contact
  • Body Orientation : Right Angle
  • Current Rating : 500mA
  • Voltage Rating : 50 V ac
  • Series : FH33
  • Number of Rows : 1
  • Contact Plating : Gold
  • Termination Method : Solder
  • CODE No.:772-6964
