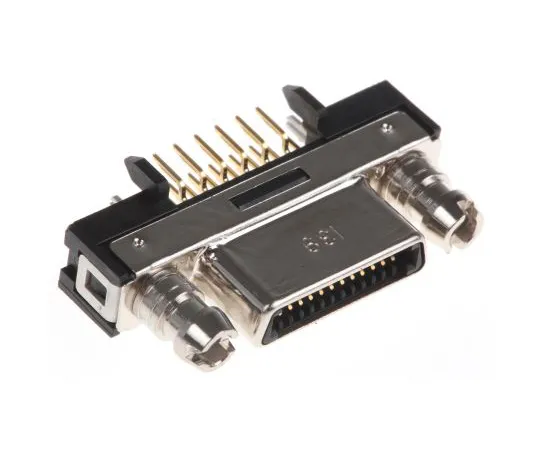

63-5085-58 3M SDR 122 Series, 26 Way Through Hole Micro-D PCB Connector Socket, 0.8mm Pitch 12226-1150-00FR
Product Description
Product Model: 63-5085-58Product Brand: 3M Company Feat […]
Contact Us
Product Details
Product Model: 63-5085-58
Product Brand: 3M Company
Features
- Shrunk Delta Ribbon (SDR) Connectors. These 3M 122 Series Shrunk D Ribbon (SDR) Boardmount Shielded Receptacles have a low profile 0.8 mm pitch. The design of these 122 Series Shrunk D Ribbon (SDR) Boardmount Shielded Receptacles includes provision for M2 Jacksocket screws available separately, see below, or factory installed for stock numbers: ; 770-9209 770-9209 and ; 770-9206 770-9206. Jacksocket Screws:. ; 770-9212 770-9212 : M2 for 0.8 mm thick Panel ; 770-9221 770-9221 : M2 for 1.2 mm thick Panel. 122xx-xx 5 x-xxxx: Non-removable M2 Screw Jacks installed 122xx-xxxx-xx FR : 0.76 μm Gold plating on contact area and Gold Flash on solder Tails 122xx-xxxx-xx PL : 0.2 μm Gold plating on contact area and Gold Flash on solder Tails
Spec
- Quantity：1piece
- Number of Contacts : 26
- G***er : Female
- Body Orientation : Straight
- Mounting Type : Through Hole
- Pitch : 0.8mm
- Current Rating : 500mA
- Length : 24.8mm
- Width : 11.5mm
- Depth : 5mm
- Dimensions : 24.8 x 11.5 x 5mm
- Minimum Operating Temperature : -40°C
- CODE No.:770-9218
