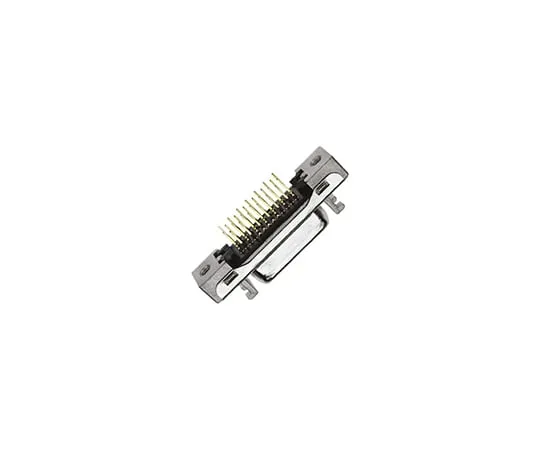

63-5085-53 3M MDR 102 Series, 36 Way Through Hole Micro-D PCB Connector Socket, 1.27mm Pitch 10236-6212PC
Product Description
Product Model: 63-5085-53Product Brand: 3M Company Feat […]
Contact Us
Product Details
Product Model: 63-5085-53
Product Brand: 3M Company
Features
- The pitch interval shown is the pitch interval of the PC tail.
- Straight Panel Mounting Through Hole Receptacle 102 Series with Screw Lock
- This 3M Mini D Ribbon (MDR) 102 Series PCB Shielded Receptacle has M2.5 or M2.6 Lockdown Screws.
- Designed with a latch interface for stable connector connections.
- Kanai Party: 101XX-6000 Series Plug, Representative Product Number; Refer to 163-3285 163-3285 Contact: 101XX-3000 Series Plug, Representative Part Number; Refer to 515-7476 515-7476. N 102xx-xxxxxx: Heat Resistant PCT Insulator x102xx-xx 0 xxx: M2.6 Panel and Screw Lock x102xx-xx 1 xxx: M2.5 Panel and Screw Lock x102xx-xxxxxxP C: 0.76 μm Gold Plated on Contact, with Gold Plated on Tail x102xx-xxxxP L: 0.2 μm Gold Plated on Contact, with Gold Flash Plated and Lubricant on Tail
Spec
- Quantity：1piece
- Number of Contacts : 36
- G***er : Female
- Body Orientation : Straight
- Mounting Type : Through Hole
- Pitch : 1.27mm
- Current Rating : 1A
- Housing Material : Zinc Alloy
- Length : 43.5mm
- Width : 11mm
- Depth : 9.1mm
- Dimensions : 43.5 x 11 x 9.1mm
- Minimum Operating Temperature : -20°C
- CODE No.:770-9161
- RoHS3 (EU)2015/863 Certificates can be issued
