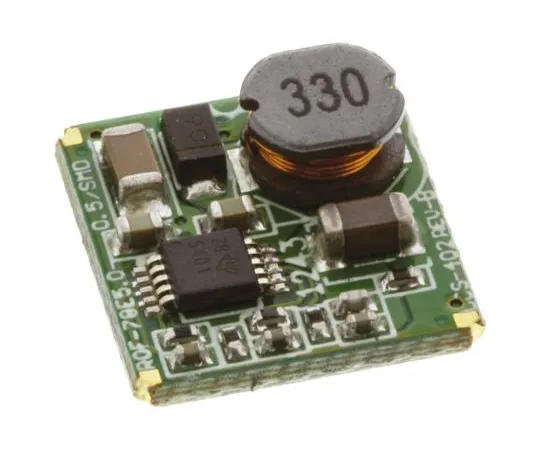

63-5085-34 Recom Switching Regulator, 9 → 36V dc Input, 5V dc Output, 500mA ROF-78E5.0-0.5SMD
Product Description
Product Model: 63-5085-34Product Brand: Recom Features […]
Contact Us
Product Details
Product Model: 63-5085-34
Product Brand: Recom
Features
- 3. Recom Switching regulator, SMD, 0.5A, ROF-78E Series. The ROF-78E series is part of the Recom Innoline. This is a DC/DC converter, non isolated Switching Regulator. This Switching regulator features a low profile of only 4.5mm and a wide Input range 5Vdc to 36Vdc. The Recom ROF-78E DC/DC converter has an operating range from -40°C to +75°C and it ‘s cooled by free air convection. Low Profile 4.5mm Low Cost Wide Input Range (5V - 36V) Short Circuit, overload and over temperature protection No Load Input Current 5mA max Castellated Connections
Spec
- Quantity：1piece
- Input Voltage : 9 → 36V dc
- Output Voltage : 5V dc
- Number of Outputs : 1
- Output Current : 500mA
- Mounting Type : Surface Mount
- Package : SMD
- Minimum Temperature : -40°C
- Maximum Temperature : +75°C
- Efficiency : 87%
- MTBF : 700000h
- Load Regulation : ±3%
- Line Regulation : ±1%
- Ripple And Noise : 100mV Pk-Pk
- Width : 13.5mm
- CODE No.:770-4377
