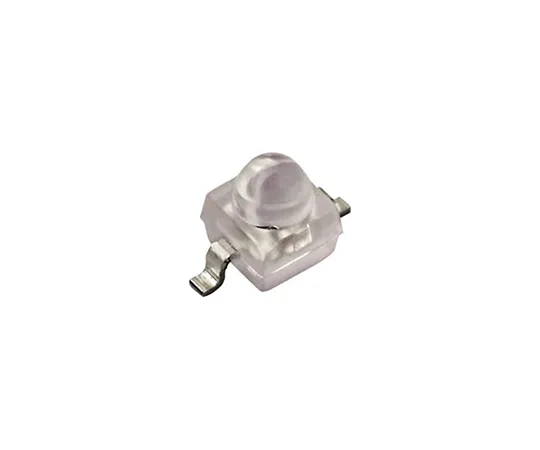

63-5083-41 VEMT2520X01 Vishay, ±15 ° IR + Visible Light Phototransistor, Surface Mount 2-Pin Subminiature package VEMT2520X01
Product Description
Product Model: 63-5083-41Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-5083-41
Product Brand: Vishay
Features
- VEMT2500 and VEMT2520 Series Phototransistors. The VEMT2500 and VEMT2520 series, from Vishay Semiconductor, are a family of silicon NPN phototransistors. They are in clear epoxy subminiature packages with a dome lens and a choice of lead options. The VEMT2500 and VEMT2520 phototransistors are sensitive to visible and near IR radiation.. Features of the VEMT2500 and VEMT2520 phototransistors: Subminiature package Lead types: gull-wing (GW) or reverse gull-wing (RGW) Dimensions: 2.3 x 2.3 x 2.8 mm High radiant sensitivity Angle of half intensity: 15° Fast response times
Spec
- Quantity：1bag(10pieces)
- Spectrums Detected : Infrared, Visible Light
- Number of Channels : 1
- Maximum Light Current : 9000µA
- Maximum Dark Current : 100nA
- Angle of Half Sensitivity : ±15 °
- Number of Pins : 2
- Mounting Type : Surface Mount
- Package Type : Subminiature
- Dimensions : 2.3 x 2.3 x 2.77mm
- Collector Current : 50mA
- Width : 2.3mm
- CODE No.:768-9417
