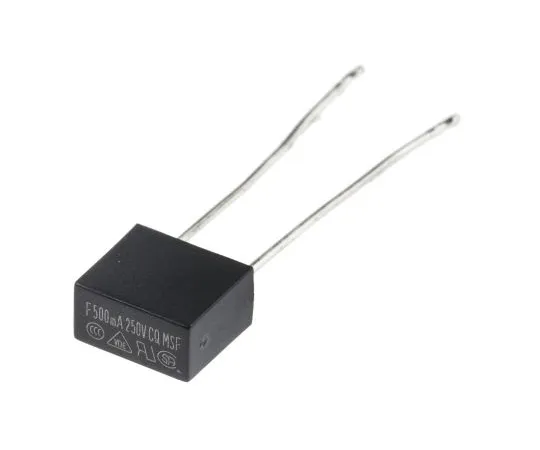

63-5081-92 RS PRO 500mA Radial Non-Resettable Wire Ended F***, 250V 767-5106
Product Description
Product Model: 63-5081-92Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5081-92
Product Brand: RS PRO
Features
- RS Fast Acting TE5 F***s. RS fast acting TE5 f***s are a convenient and reliable solution to a vast array of application requirements.
Spec
- Quantity：1bag(10pieces)
- Current Rating : 500mA
- Lead Orientation : Radial
- Voltage Rating : 250V
- Body Material : Thermoplastic
- Body Length : 8.35mm
- Body Width : 4.3mm
- Body Height : 7.7mm
- Wire Length : 4.3 mm, 22 mm
- Wire Pitch : 5.08mm
- Breaking Capacity at Maximum Voltage Rating : 35 A @ 250 V ac
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +125°C
- Wire Diameter : 0.62mm
- CODE No.:767-5106
